LED MODULE REMOVAL TOOL

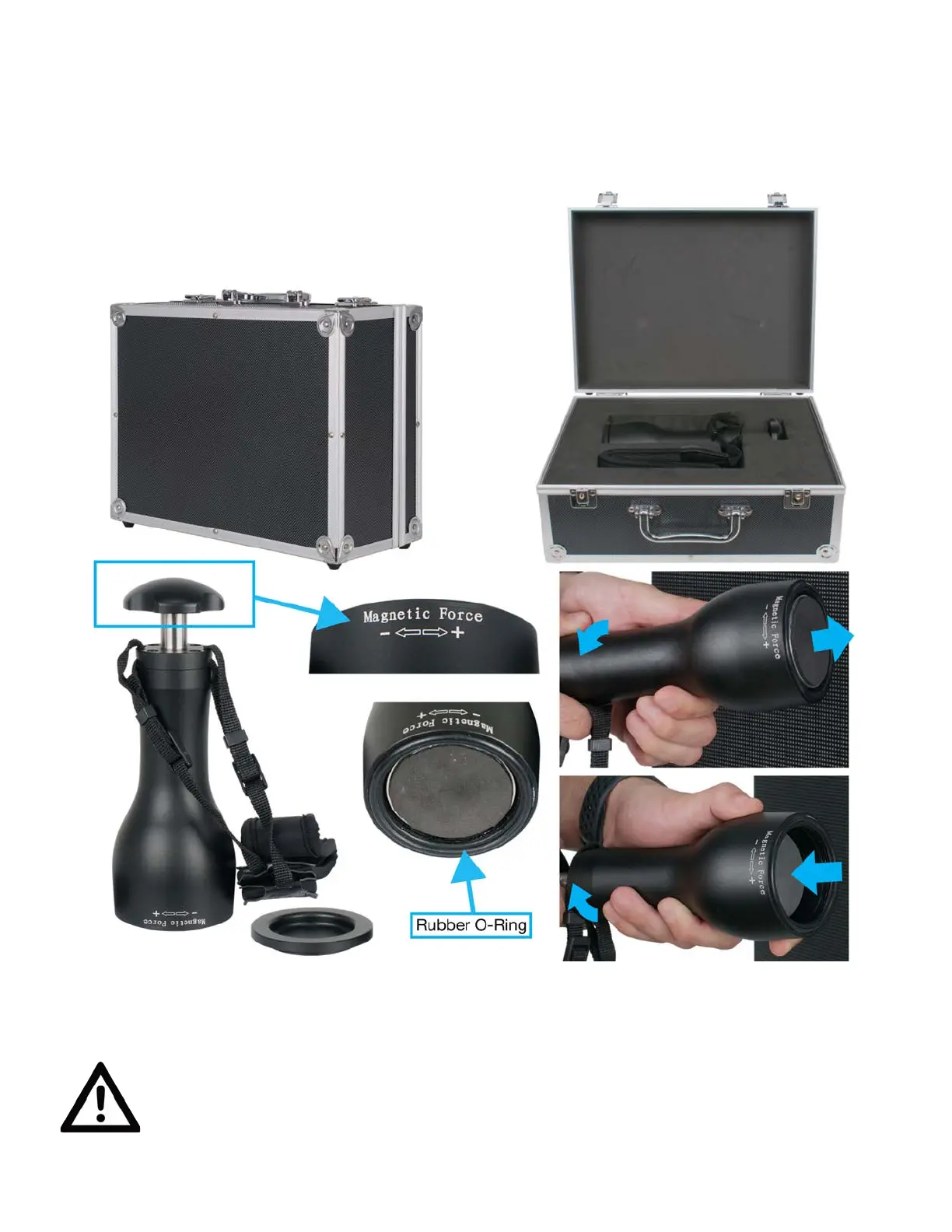

A technician can use the optional VSM111 Magnetic Module Removal Tool (sold separately) to
safely remove and reinstall any of the four LED Modules in the Vision Series LED Video Panel, and
minimize potential damage from mishandling, ESD exposure, or other issues.
The percieved “Magnetic Force” is relative to the distance the magnet is from the surface. Turning
the knob clockwise, in the “+” direction, advances the magnet, moving it closer to the front; turning
it counterclockwise, in the “-” direction, retracts the magnet, moving it away from the front.
The magnet must be fully retracted in the Magnet Module Removal Tool before
placing it against the LED Module face. This prevents the magnet from snapping
against the LEDs and damaging them.
