HORIZONTAL PANEL ASSEMBLY

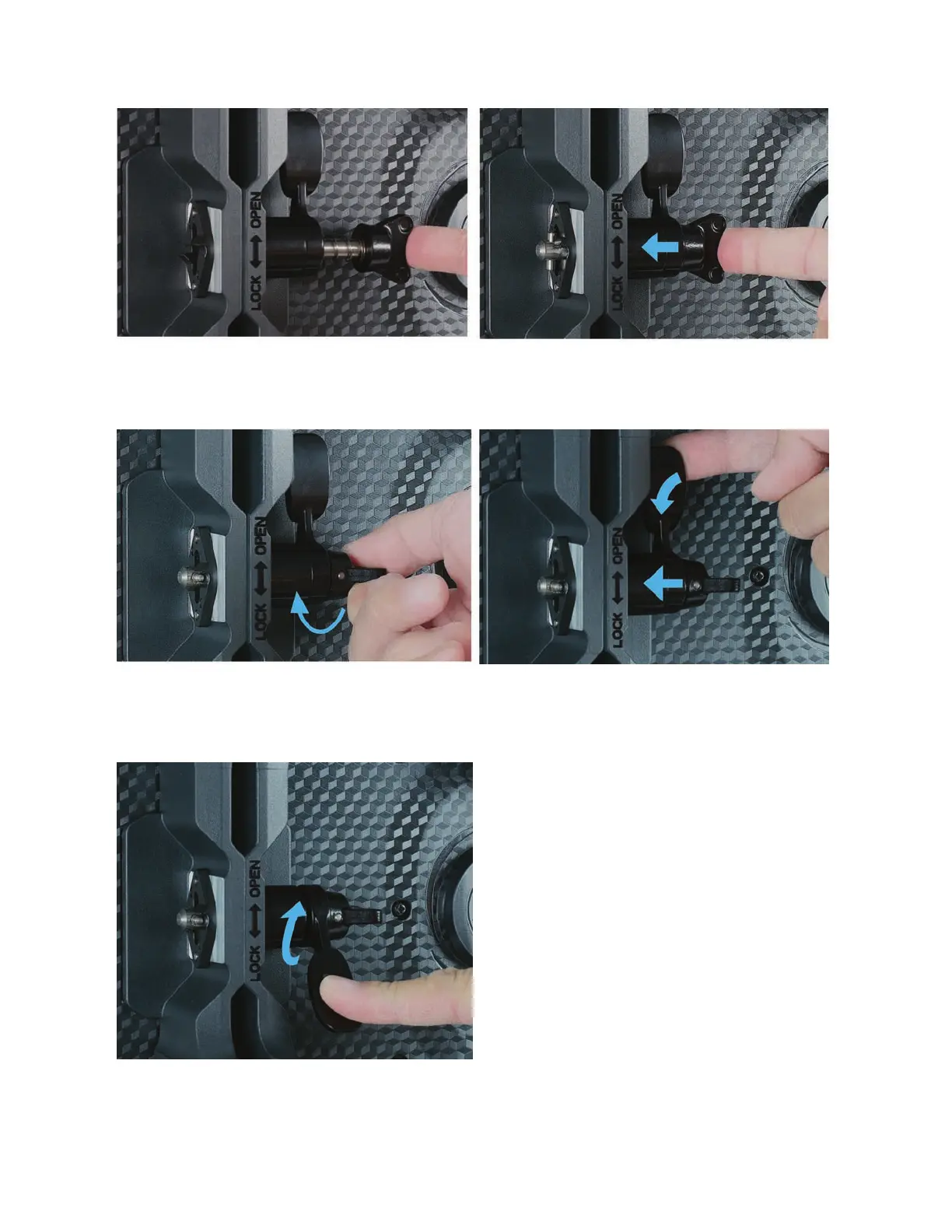

1. The horizontal tab-keyed connector is
spring loaded.
2. Press the horizontal tab-keyed connec-
tor until the tab-key passes through the
tab-keyed socket.
3. Rotate the handle to the right (clock-
wise) to hold the horizontal tab-keyed
connector in place.
4. Rotate handle downward (counter-
clockwise) to cinch the horizontal tab-
keyed connector.
5. To unlock, rotate handle clockwise, re-
leasing the tension of the horizontal tab-
keyed connector cinching mechanism.
