VERTICAL PANEL ASSEMBLY

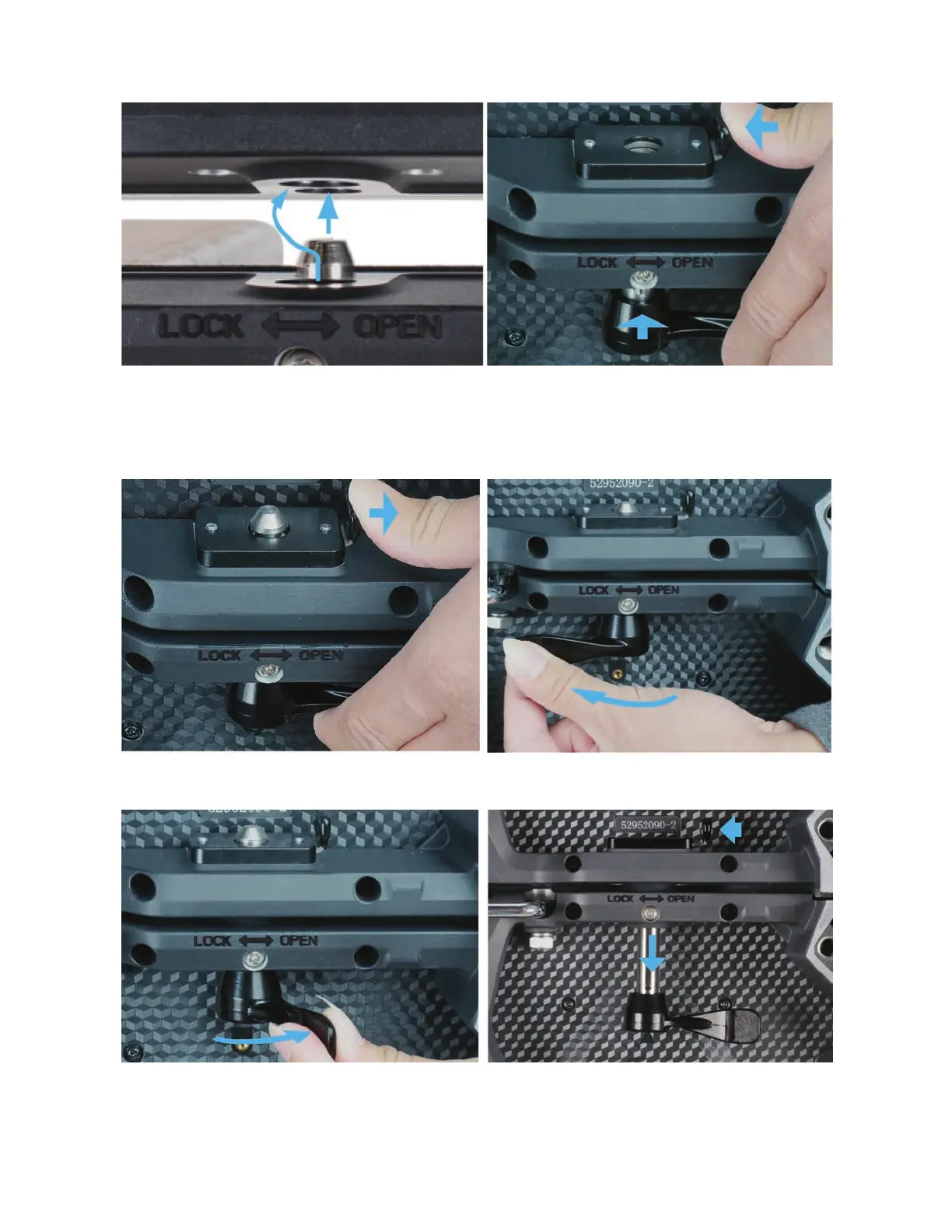

1. Align the vertical positional posts with
their corresponding alignment holes.
2. Press the spring-loaded locking latch
toward the left while pressing the verti-
cal connector upwards into the locking
latch.
3. Release the latch, then lock the panel in place by twisting the vertical connector
lever to the left, towards the direction marked “LOCKED”.
4. To unlock, twist the vertical connector lever to the right, towards the direction
marked “OPEN”. The locking post will then drop out of place.
