ADTECH9 Series CNC Maintenance Manual
- 195 -

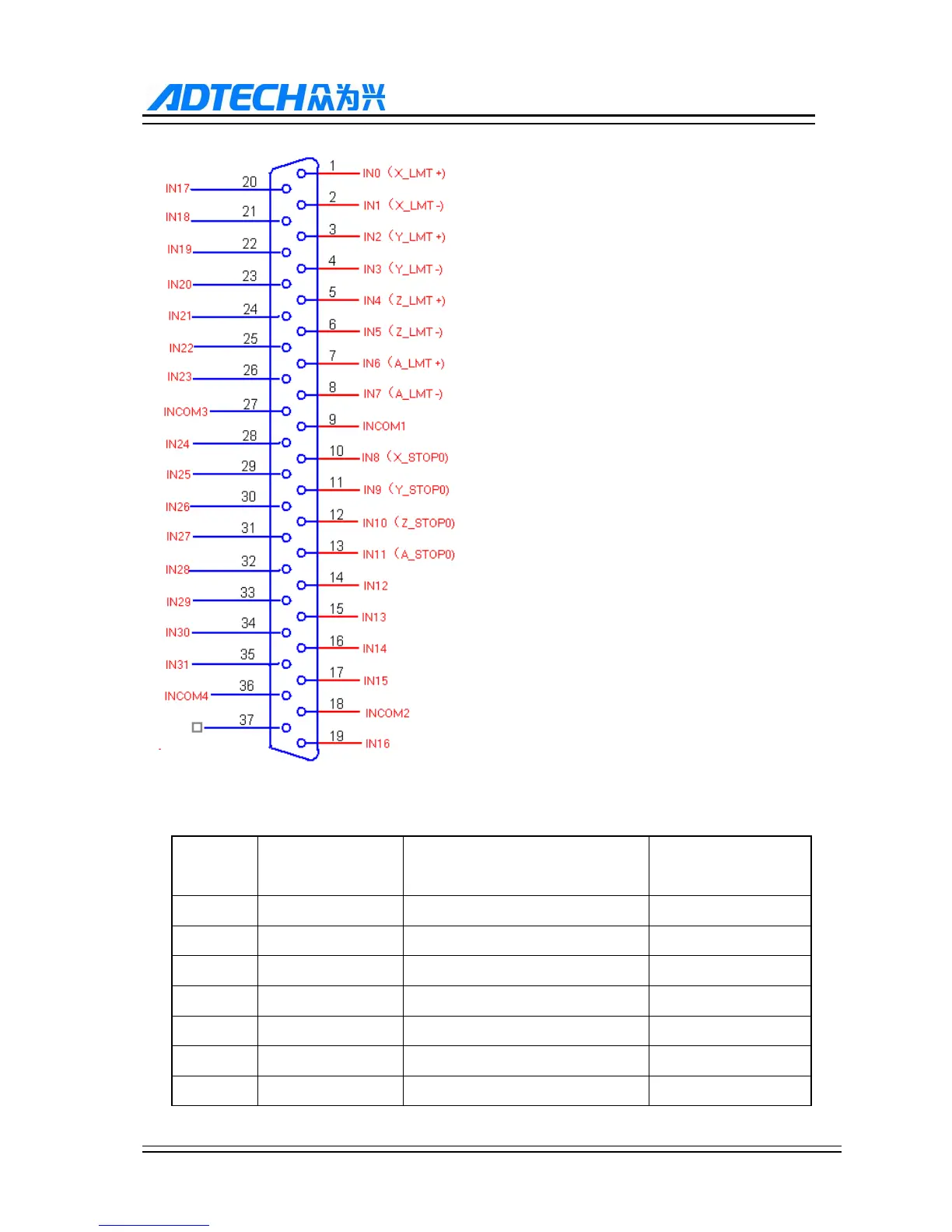

Machine input interface
37-pin
plug wire
9960(40)
Definition
Function 9163 Definition
1
IN0X_LMT+
X axis positive limit IN00
2
IN1X_LMT-
X axis negative limit IN01
3
IN2Y_LMT+
Y axis positive limit IN02
4
IN3Y_LMT-
Y axis negative limit IN03
5
IN4Z_LMT+
Z axis positive limit IN04
6
IN5Z_LMT-
Z axis negative limit IN05
7
IN6A_LMT+
A axis positive limit IN06
