Adtech ADTECH9 Series User Manual

ADTECH9 Series CNC Maintenance Manual
- 205 -
12 IN63 Select A axis
13 IN65 Emergency stop
14 HB Hand encoder phase B input signal
15 5V- Internal -5V power supply
12.2.5. Analog output interface (9640 series XS8)

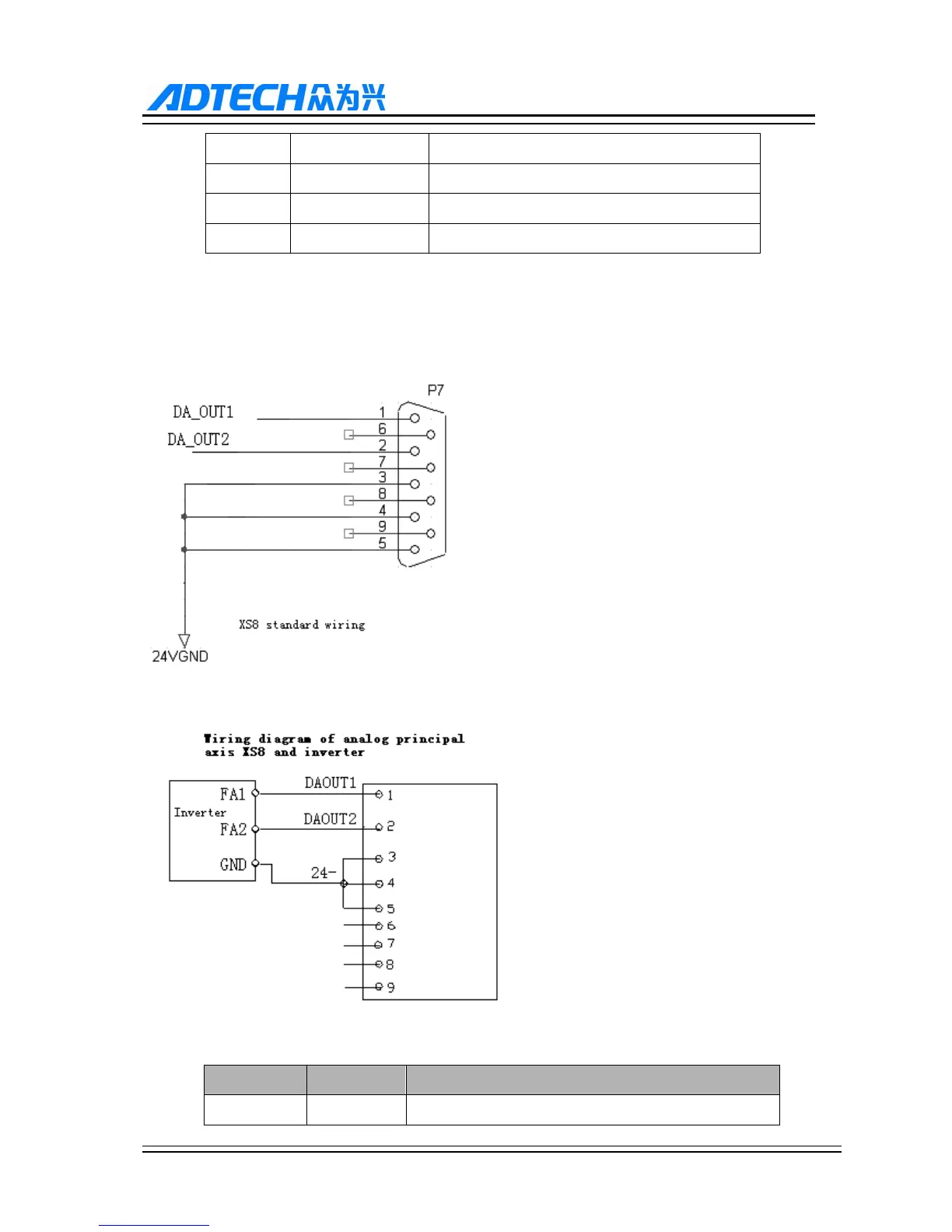

Analog output interface wiring diagram:
The wiring is also suitable for XS8 interface of 96 series controller;
Wire No. Definition Function
1 DAOUT1 Analog voltage output (0~10) V
