ADTECH9 Series CNC Maintenance Manual
- 243 -
14.
Appendix-Common Servo Wiring Diagrams
14.1.
Pulse control port wiring definition

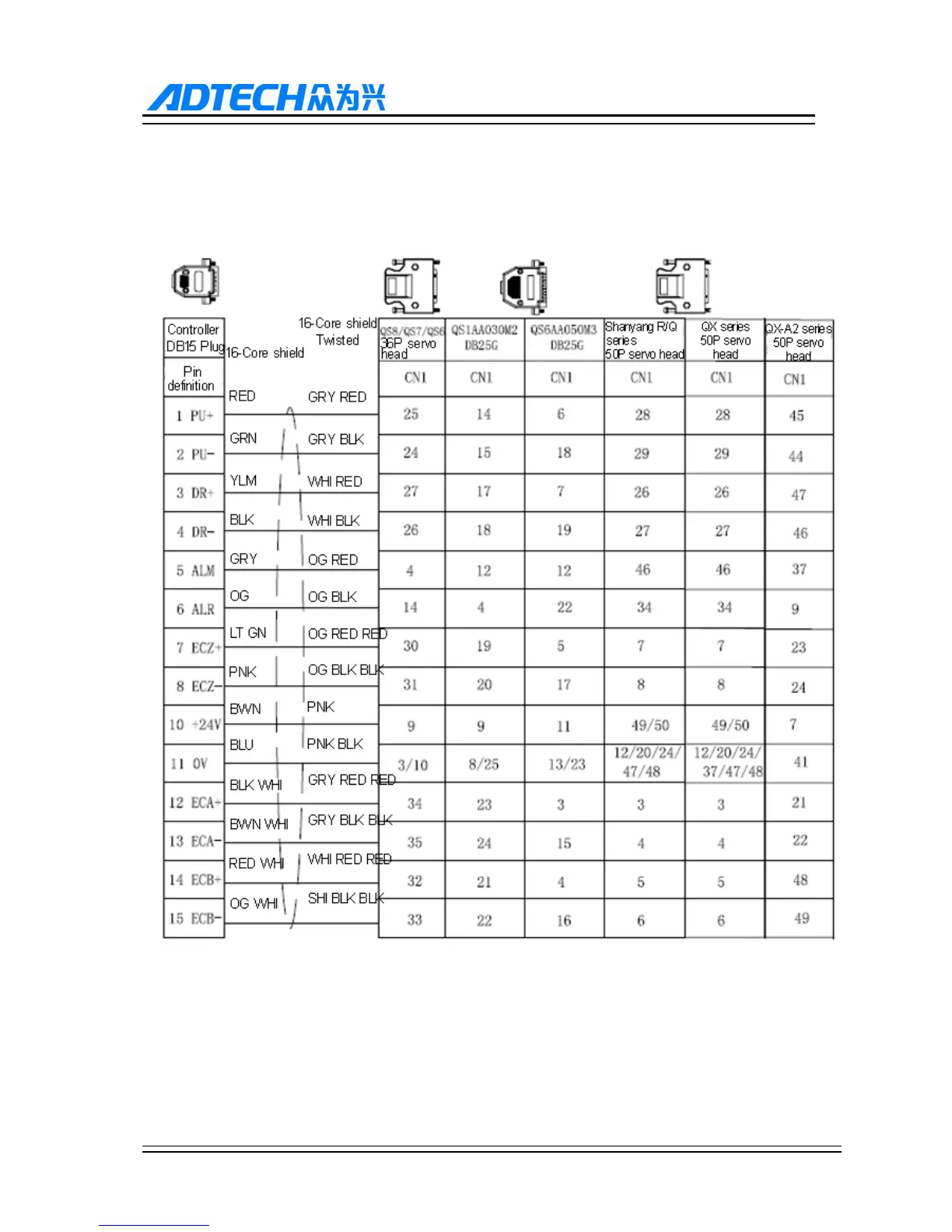

14.1.1.
W
iring diagram of
ADTECH QS,
QX and Shanyang servo driver
14.1.2.
Y
askawa, Matsushita, Fuji,
TECO
247
249
