2-6 ADAM 4000 Series User's Manual
Installation Guideline
Figure 2-2
Basic Hook-up of ADAM Module to Host Switches
The following items are required to configure a module: an ADAM
converter module, a personal computer with RS-232 port (baud rate set to
9600) and the ADAM utility software.
2.2 Basic configuration and hook-up
Before placing a module in an existing network, the module should be
configured. Though all modules are initially configured at the factory, it is
recommended to check that the baud rate is set correctly.
Default Factory Settings
Baud rate: 9600 Bit/sec.
Address: 01 (hexadecimal)

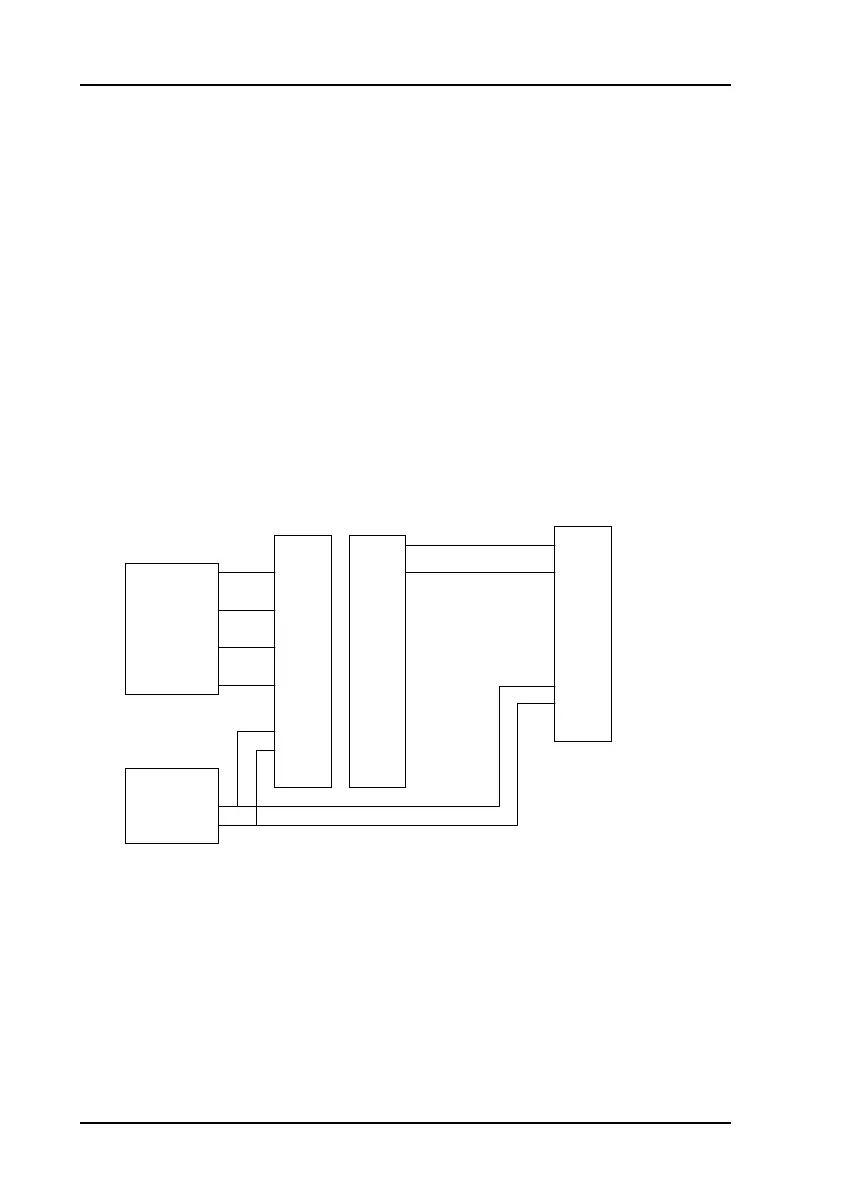

The basic hook-up for module configuration is shown below.
HOST PC
POWER
+10~+30 V
DC
TXD (3)
RXD (2)
RTS (7)
GND (5)
+Vs
GND
DATA+
DATA-
DATA+
DATA-
+Vs
GND
RS-232
RS-485
ADAM-4520 RS-232/RS-485 Converter
ADAM
I/O
Module
()=pin number on EIA-232-D
connector (RS-232)
To Next Page
