3-22 ADAM 4000 Series User's Manual
ADAM-4017
CODE INPUT RANGE
08
09
0A
0B
0C
DATA
ACQUISITION
MODULE
Vin 0+
Vin 0-
Vin 1+
Vin 5+ Vin 5- Vin 6+
INIT*
(Y) DATA+
(G) DATA- (R) +Vs
(B) GND
Vin 1-
Vin 4+
Vin 4-
AGND
INPUT:
STRAIN GAUGE
mV, V, mA
OUPUT:
RS-485
0D
–10 V
–5 V
–1 V
–500 mV
–100 mV
–20 mA
Vin 7+
Vin 3-
Vin 3+
Vin 2-
Vin 2+
ADAM-4017

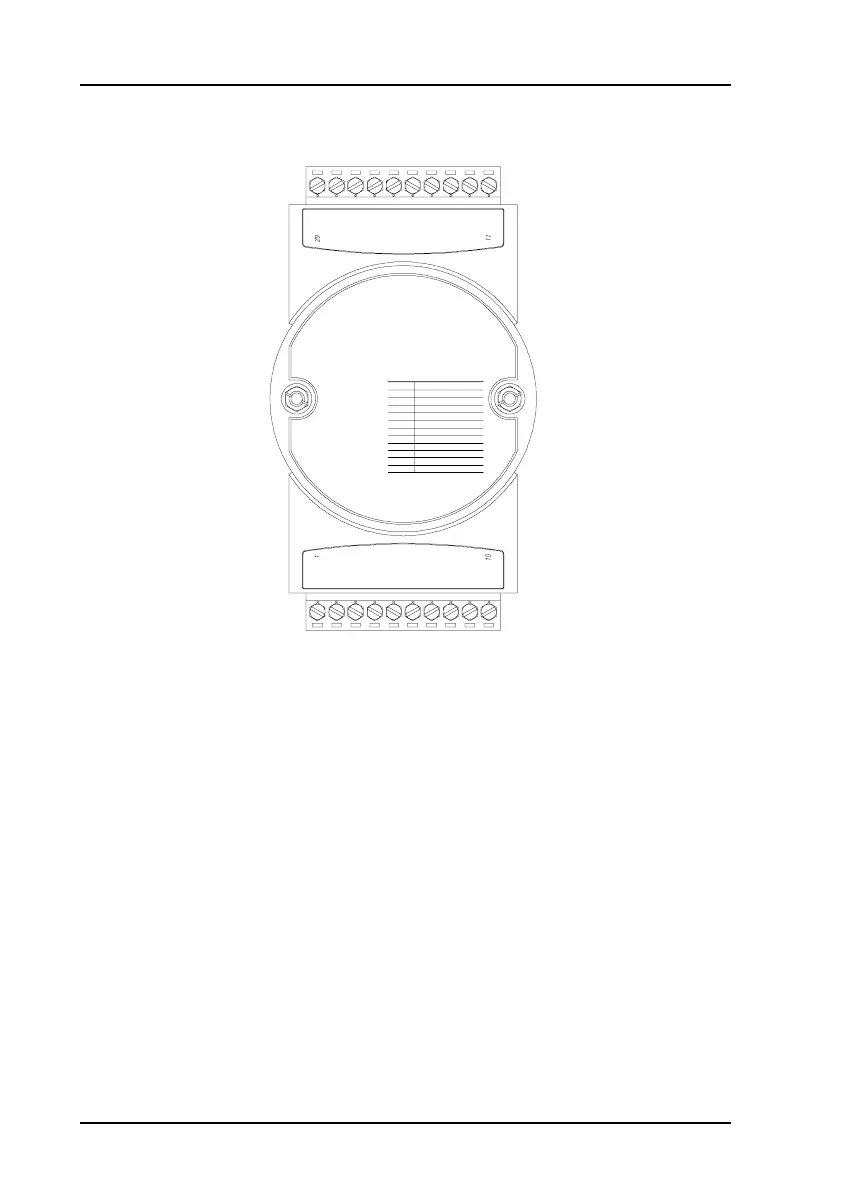

Figure 3-16 ADAM-4017 8-channel Analog Input Module
Channels:
- six differential, two single-ended
Accepts:
- Millivolt inputs: ±150 mV and ±500 mV
- Volt inputs: ±1 V, ±5 V, and ±10 V
- Current input: ±20 mA (requires a 125 Ω resistor)
The module forwards the data to the host computer in engineering units
(mV, V, or mA)
