Chapter 2 Installation Guideline 2-11
Chapter 2
Figure 2-4

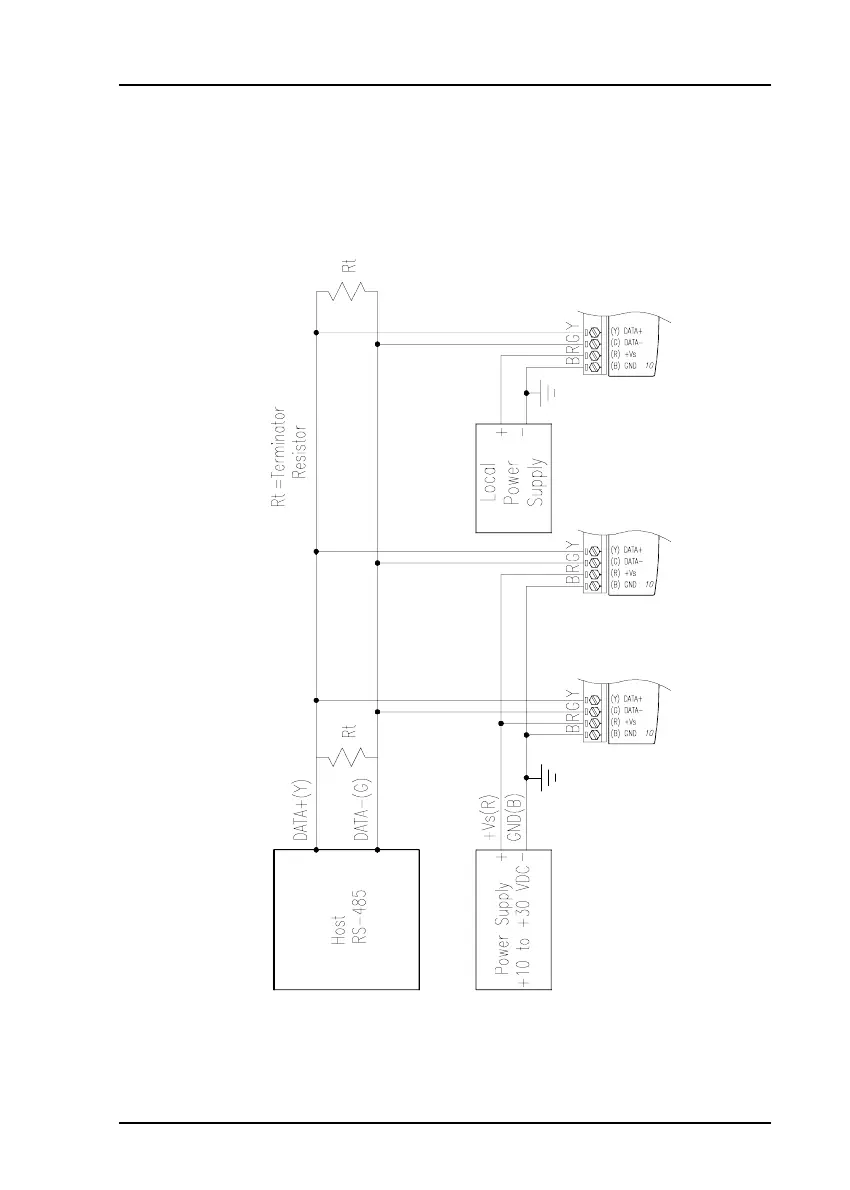

Multi-module Connection
2.4 Multiple Module Hookup
The Figure below shows how ADAM modules are connected in a multiple
module example:
