79 ADAM-4000 Series User Manual
Chapter 3 I/O Modules

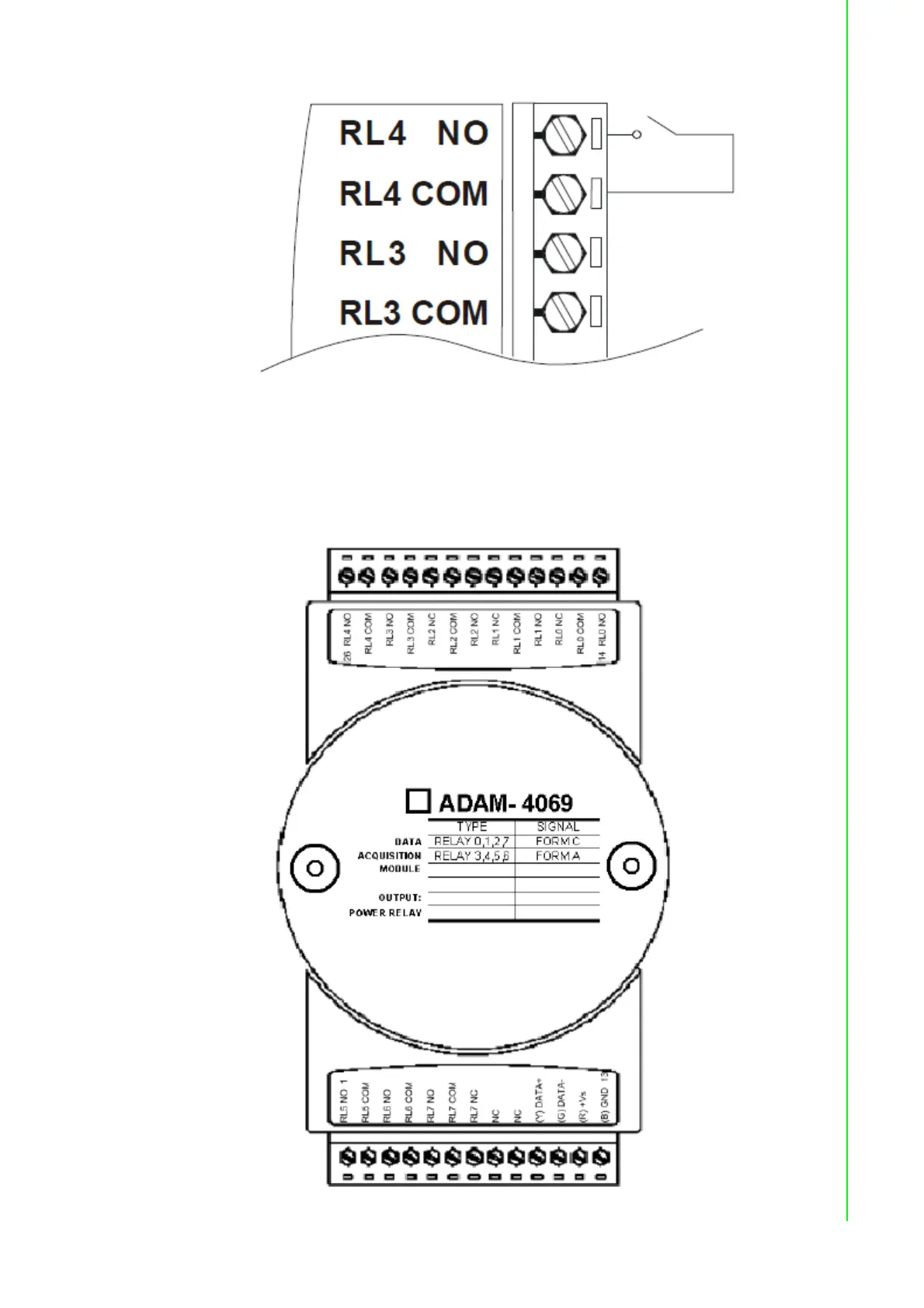

Figure 3.71 ADAM-4068 Form A relay output Wiring Diagram
3.20 ADAM-4069 8-channel Relay Output Module
The ADAM-4069 Relay Output Module provides eight channels; four are Form A and
the rest are Form C. This module is excellent for ON/OFF control or low-power
switching applications.
Figure 3.72 ADAM-4069 Relay Output Module
To Next Page
