Advantech ADAM 4100 - Page 31

I/O Modules
3-
8 ADAM 4100 Series User’s Manual

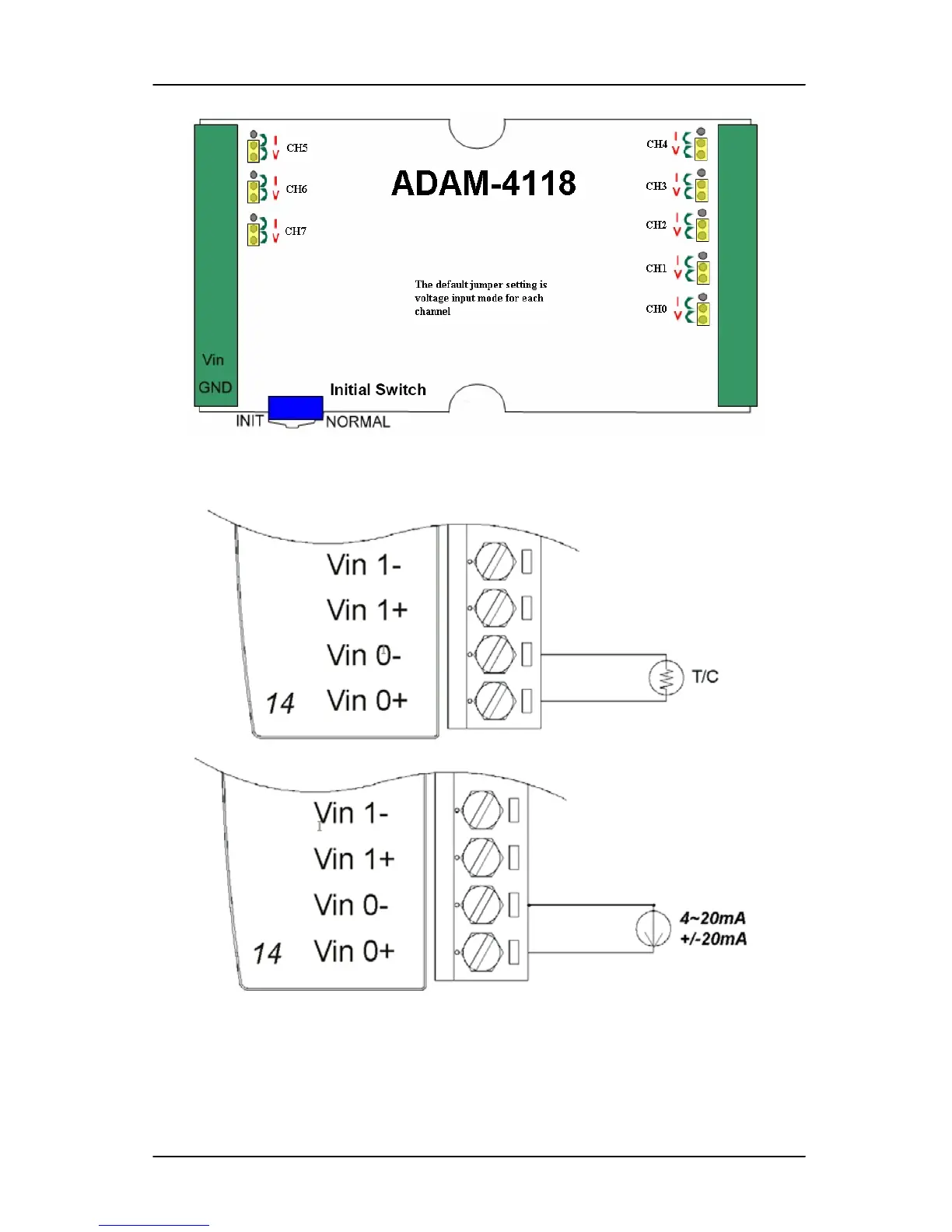

Figure 3-5 ADAM-4118 jumper setting
*There is a resister built into ADAM-4118 for
the current input mode
Figure 3-6 ADAM-4118 wiring application
