ADAM-4570 Series User Manual 10

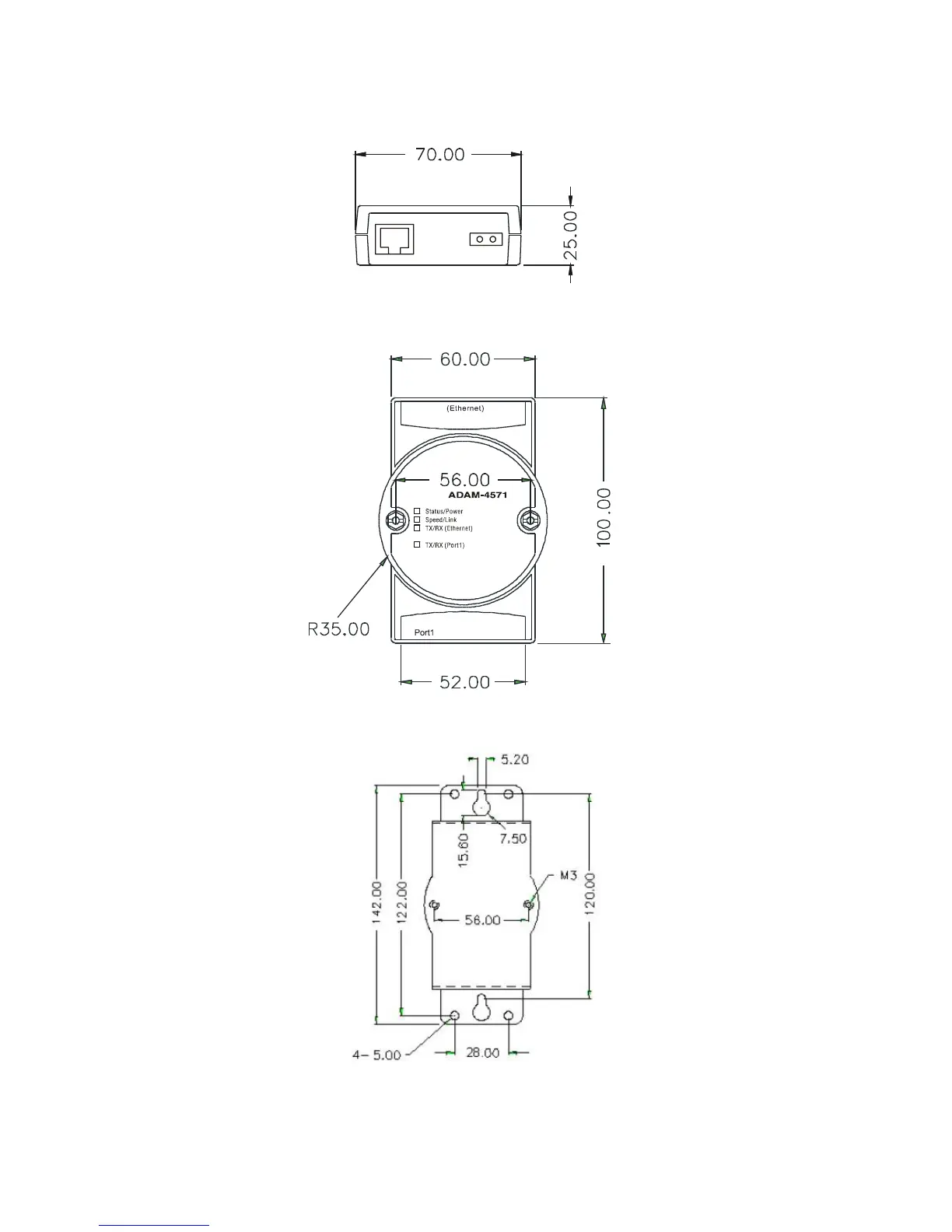

2.1.3 Dimensions (Unit: mm)
Figure 2.1: Top Panel
Figure 2.2: Front Panel
Figure 2.3: Back Panel
