DIN-rail Mounting
You can mount the ADAM-4570 series on a standard DIN-rail. First,
using two screws, attach the metal plate to the DIN-rail bracket. Because
the screw heads are beveled, the tops of the screws will be flush with the
metal plate. DIN-rail Mounting Brackets—Orientation of Metal Plates
You can now screw the metal plate with the DIN-rail bracket assembly to
the bottom of the server is a more convenient way. Next, use the remain-
ing screws to put the metal plate on the bottom of the ADAM-4570 series.

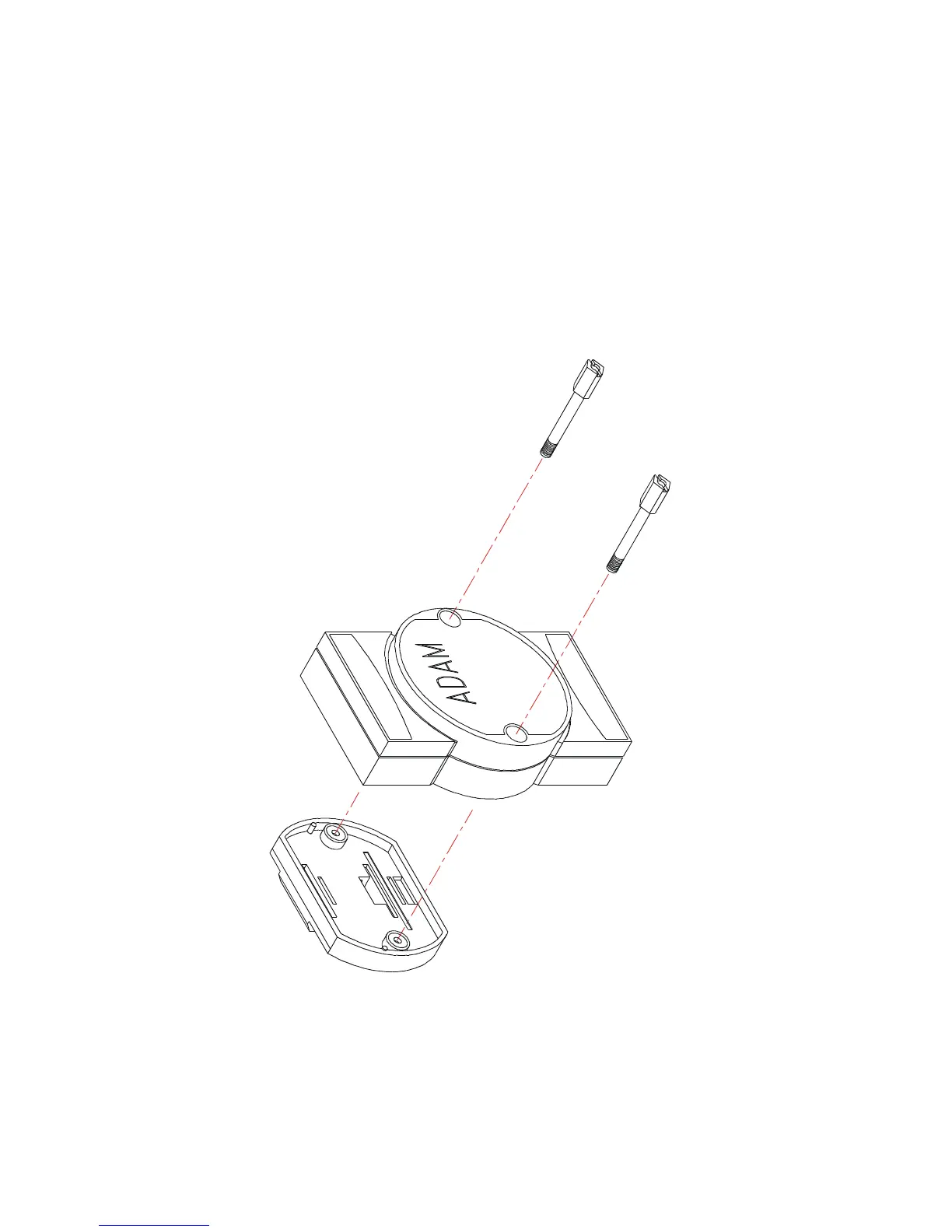

Figure 2.5: DIN-rail Mounting
