ADAM-4570 Series User Manual 12
Panel Mounting
The ADAM-4570 series can be attached to a wall using the included
metal brackets. Each bracket comes with four screws; first attach the
brackets to the bottom of the ADAM-4570 series. Next, screw each
bracket to a wall.

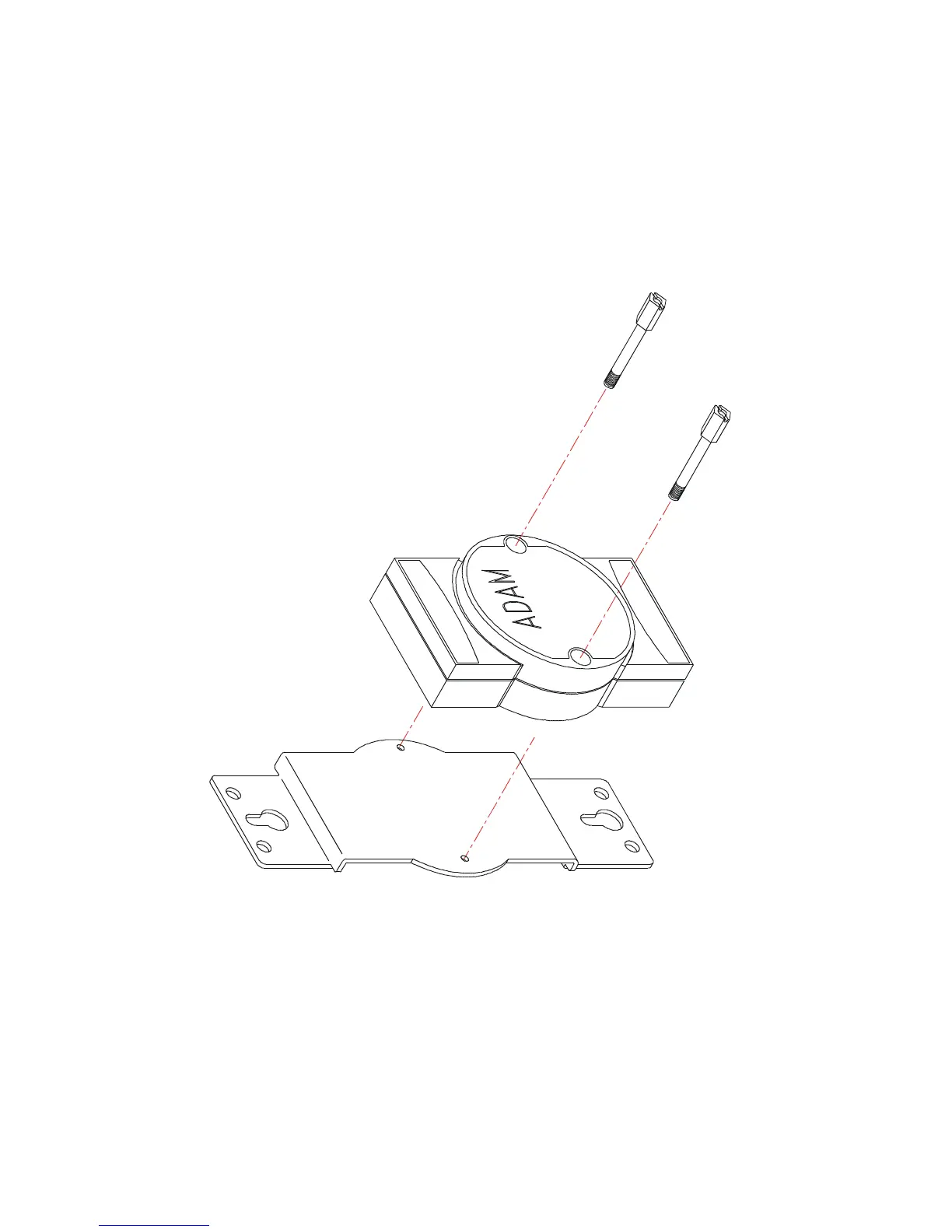

Figure 2.4: Panel Mounting
