25 Chapter 3

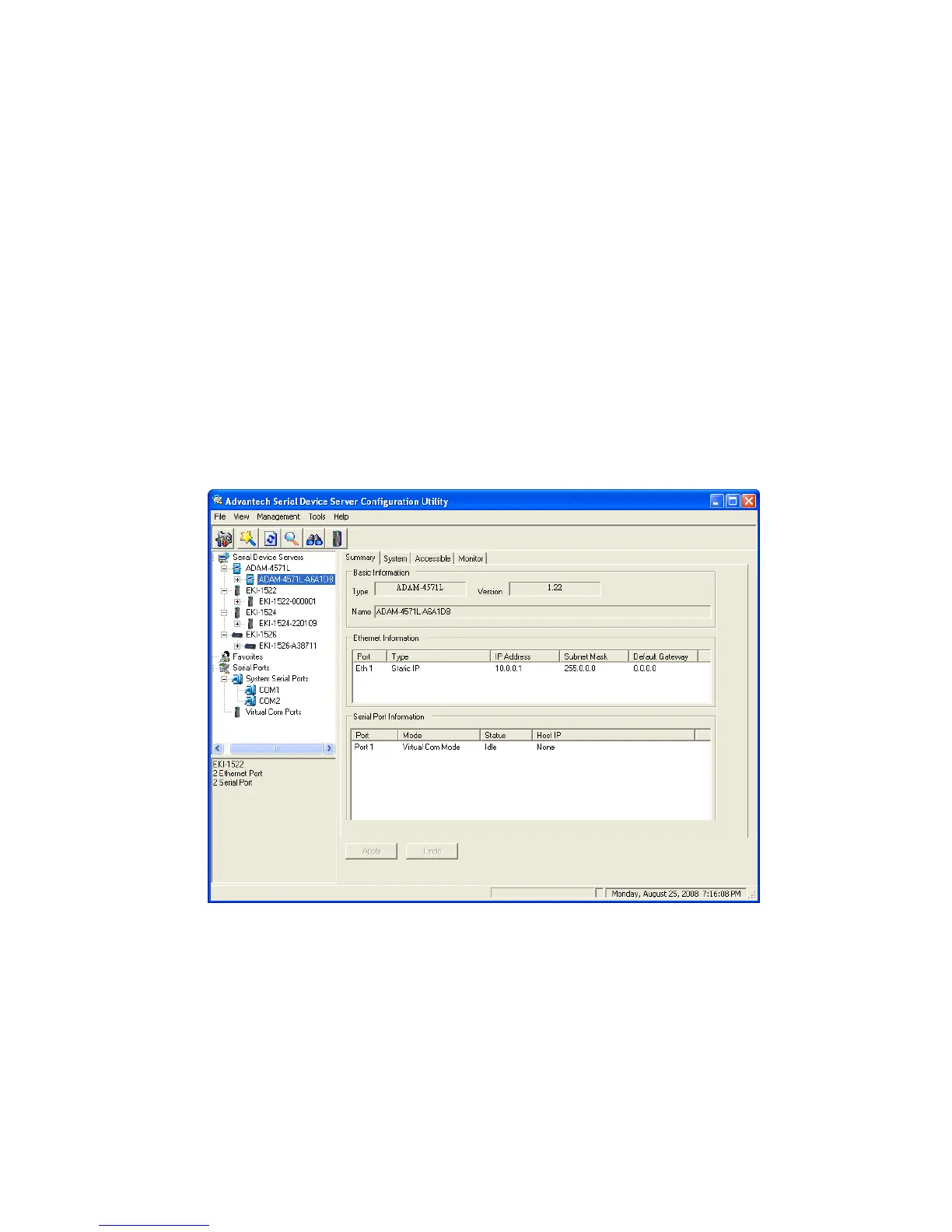

Select the device in this sub-tree. The first tab on the “Configuration
Area” shows the summary of “Basic Information” included device type,
version, and name, “Ethernet Information”, and “Serial Port Informa-
tion”. In the serial port information frame, it displays the operation mode,
status and connected host IP.
Click on the “+” before the device name, and the utility will expand the
interfaces on this device server.
Note When you run the Configuration Utility for the first
time, the default device name is "MAC ID". In this
case, the device name "ADAM-4571L-A6A1DB"
means the device "MAC ID" is "00 D0 C9 A6 A1 DB".
You can change the default device name in System
Tab of Device Properties.
