ADAM-5510/P31 3-5
Chapter 3
Mechanical
• Case: KJW with captive mounting hardware
• Plug-in screw terminal block:
Accepts 0.5 mm
2
to 2.5 mm
2
, or 1 - #12 or 2 - #14 to #22 AWG wires.
Environment
• Operating temperature: -10° to 70° C (14° to 158° F)
• Storage temperature: -25° to 85° C (-13° to 185° F)
• Humidity: 5 to 95 %, non-condensing
• Atmosphere: No corrosive gases
NOTE: Equipment will operate below 30% humidity. Howev-
er, static electricity problems occur much more
frequently at lower humidity levels. Make sure you
take adequate precautions when you touch the
equipment. Consider using ground straps, anti-static
floor coverings, etc. if you use the equipment in low
humidity environments.
Dimensions
The following diagrams show the dimensions of the system unit and
an I/O unit. All dimensions are in millimeters.

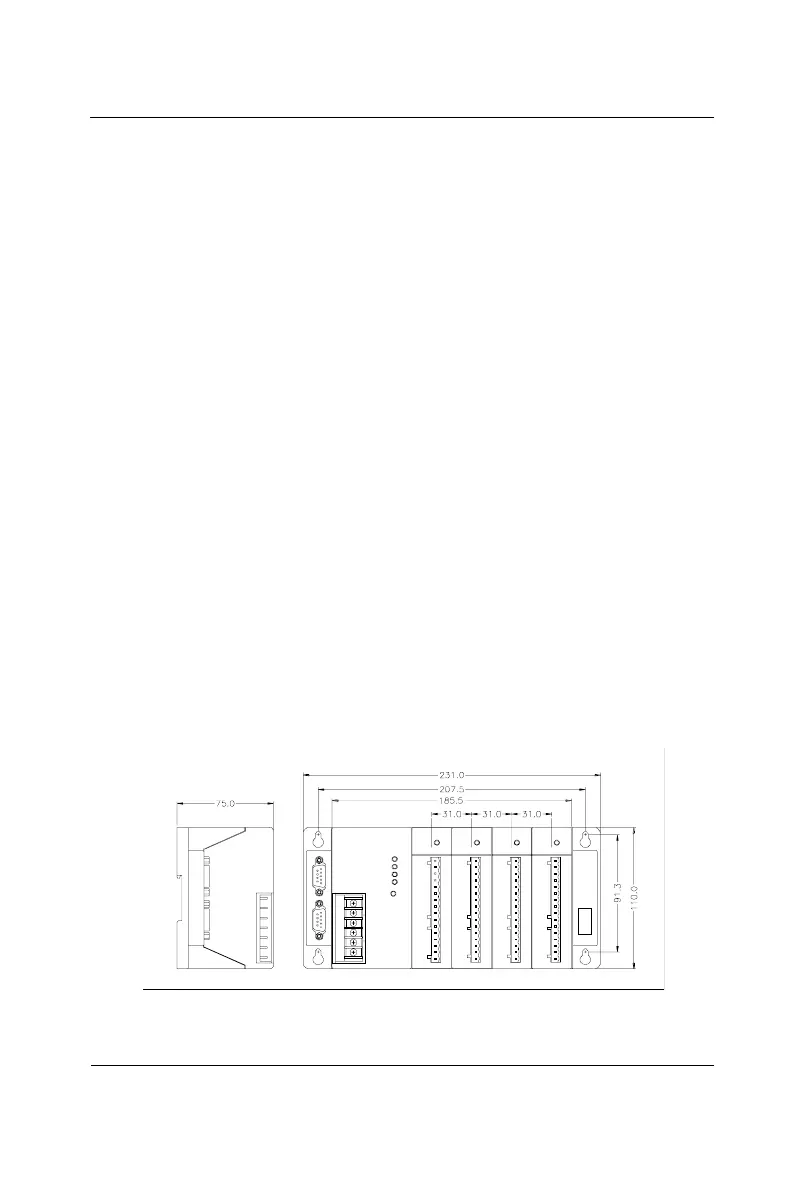

Figure 3-1: ADAM-5510/P31 system & I/O module dimensions
