Technical specifications of ADAM-5050
Table 4-10: Technical specifications of ADAM-5050
ADAM-5051 16-channel digital input module
The ADAM-5051 provides sixteen digital input channels. The ADAM-
5510/P31 can use the module’s digital inputs to determine the state of
limit or safety switches or to receive remote digital signals.
ADAM-5051

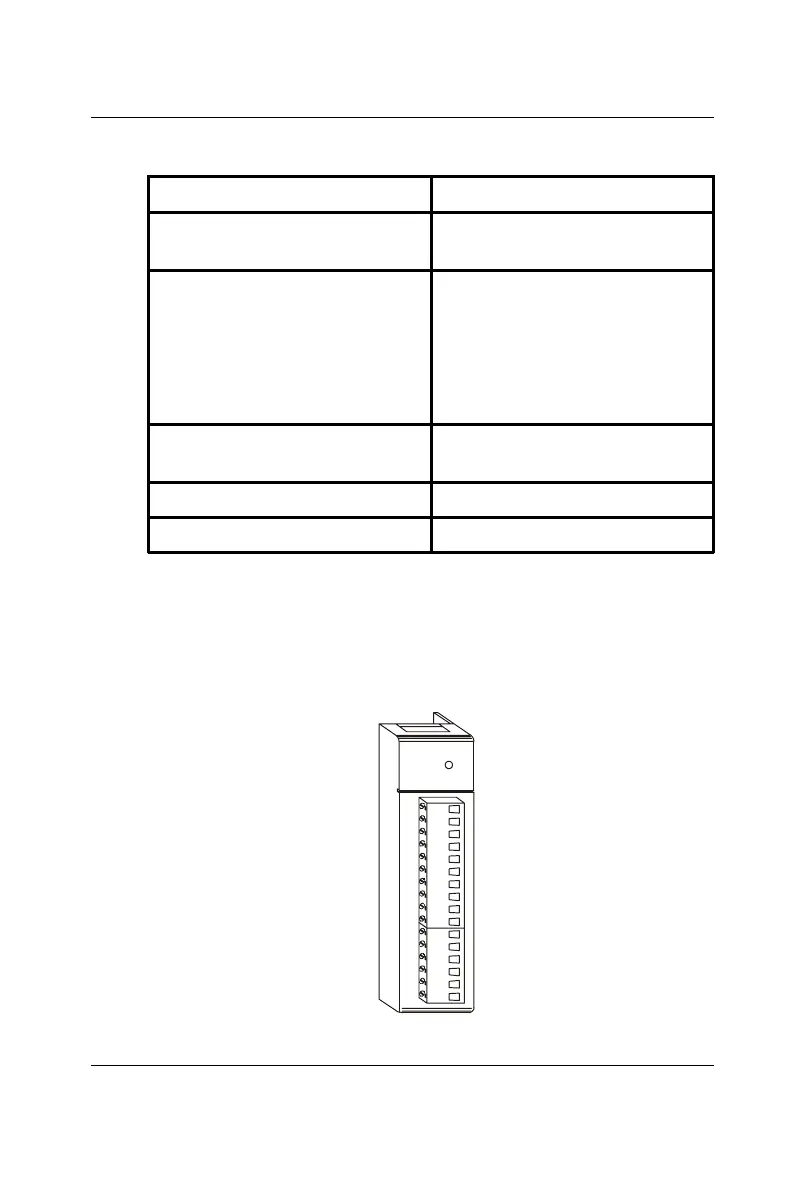

Figure 4-24: ADAM-5051 module frontal view
Points 16
Channel Setting Bitwise selectable by DIP
switch
Digital Input Dry Contact
Logic Level 0: close to GND
Logic Level 1: open
Wet Contact
Logic Level 0: +2 V max
Logic Level 1: +4 V to 30 V
Digital Output Open collector to 30 V,
100mA max load
Power Dissipation 450 mW
Power Consumption 0.4 W
16
1
ADAM-5051
16 DI
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
O
DI
DI
DI
DI
DI
DI
DI
DI
DI
DI
DI
DI
DI
DI
DI
DI
