Advantech ARK-1124 - Jumper List; Jumper Location; Jumper Setting

11 ARK-1124 User Manual
Chapter 2 H/W Installation
2.2.2 Jumper List
2.2.3 Jumper Location

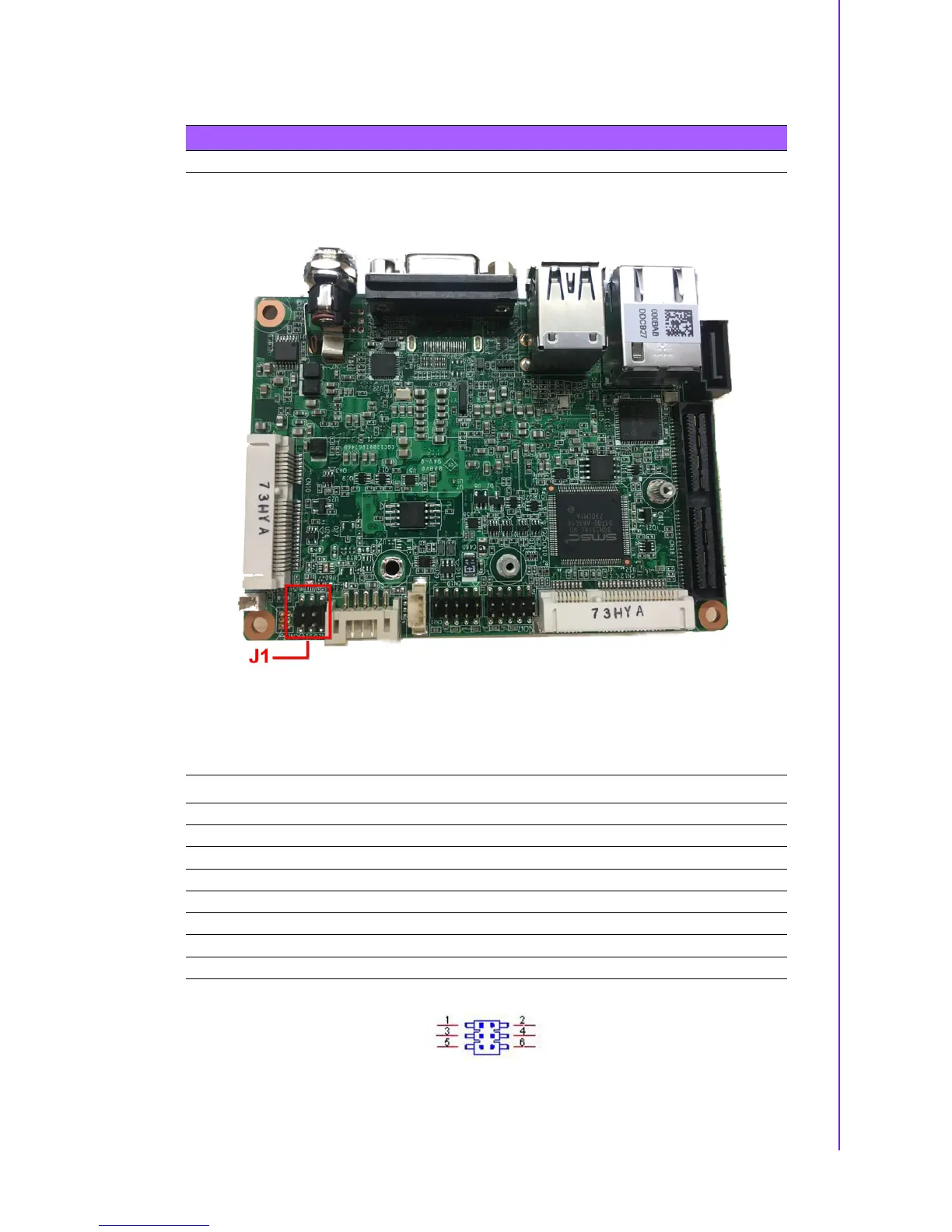

Figure 2.1 Jumper Layout
2.2.4 Jumper Setting
On the Motherboard
Table 2.1: Jumper setting
J1 Auto Power On Setting
J1 Auto Power On Setting
Part Number 1653003260
Footprint HD_3x2P_79
Description PIN HEADER 3x2P 2.0mm 180D(M) SMD SOURCE PIN
Setting Function
NL Power On by power button (default)
(1-2) +5V
(3-4) +3.3V
(5-6) AT Mode
