31 ARK-1124 User Manual
Chapter 2 H/W Installation
2.7.5 iDoor Module (AMO-1101) Installation (Option)

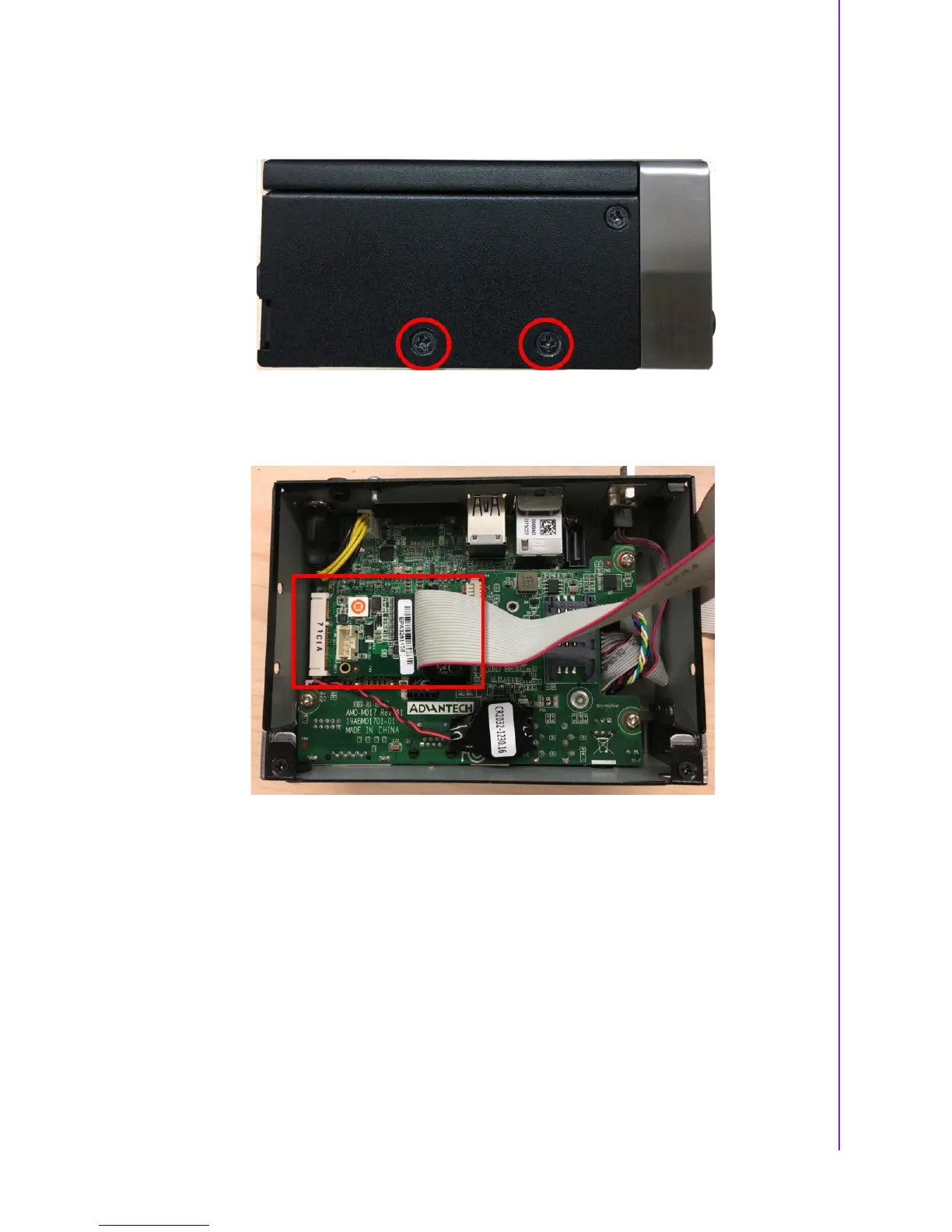

1. Remove the four screws on both sides of ARK-1124.
2. Remove the bottom cover.
3. Install iDoor module on miniPCIe slot.
