 Enable ACPI Auto Configuration
This item allows users to enable or disable BIOS ACPI auto configuration.
 Enable Hibernation
This item allows users to enable or disable hibernation.
 ACPI Sleep State
This item allows users to set the ACPI sleep state.
 Lock Legacy Resources
This item allows users to lock legacy device resources.
3.2.2.3 Super I/O Configuration
 First Super I/O Configuration (SCH3114)

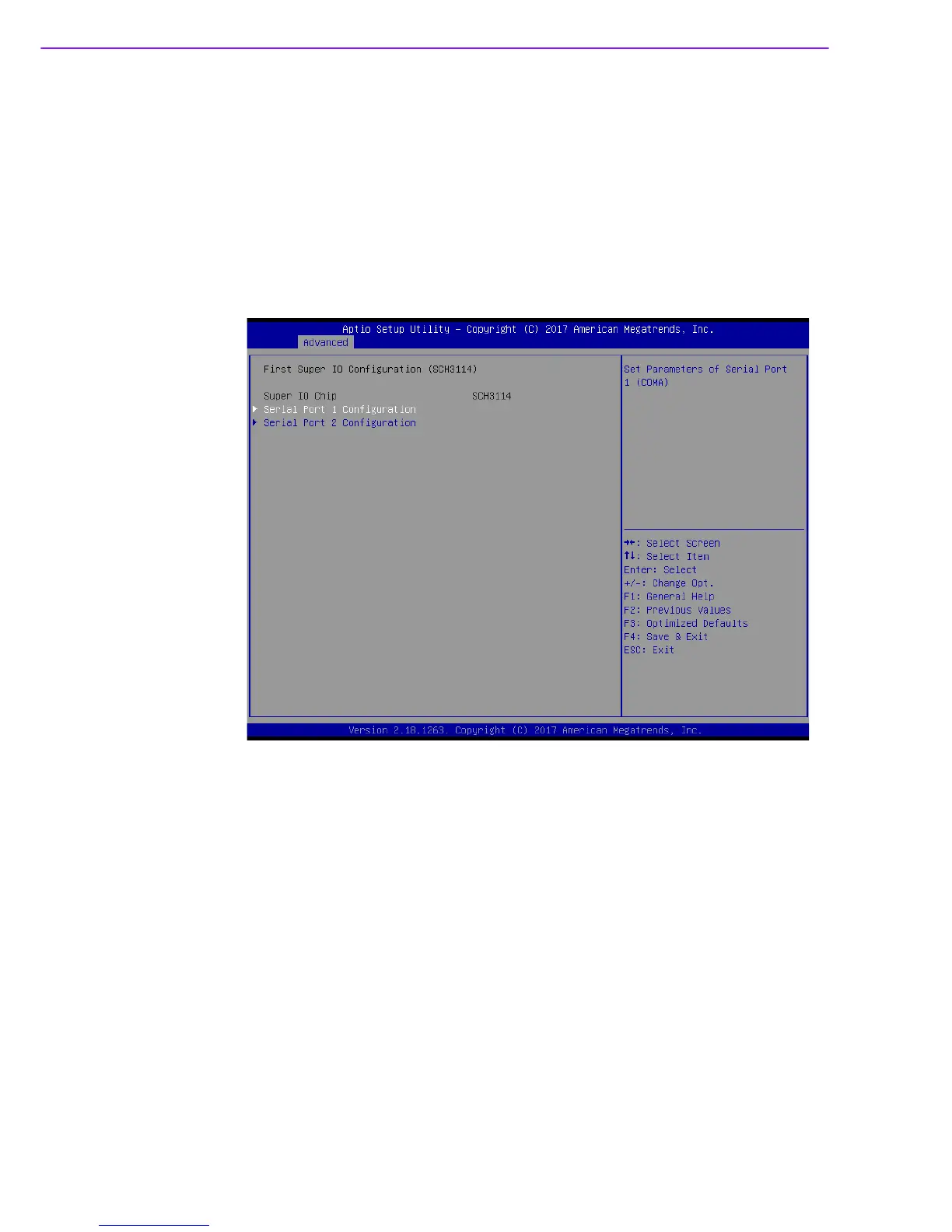

Figure 3.6 First Serial Port Configuration(SCH3114)
– Serial Port 1 Configuration
Set Parameters of Serial Port 1 (COMA).
– Serial Port 2 Configuration
Set Parameters of Serial Port 2 (COMB).
