21 ARK-1124 User Manual
Chapter 2 H/W Installation
2.5.7 VGA Connector
ARK-1124U The ARK-1124U provides a high resolution VGA interface connected by
a D-sub 15- pin connector to support a VGA CRT monitor. It supports display resolu-
tions of up to 2048 x 1280 @ 60Hz.

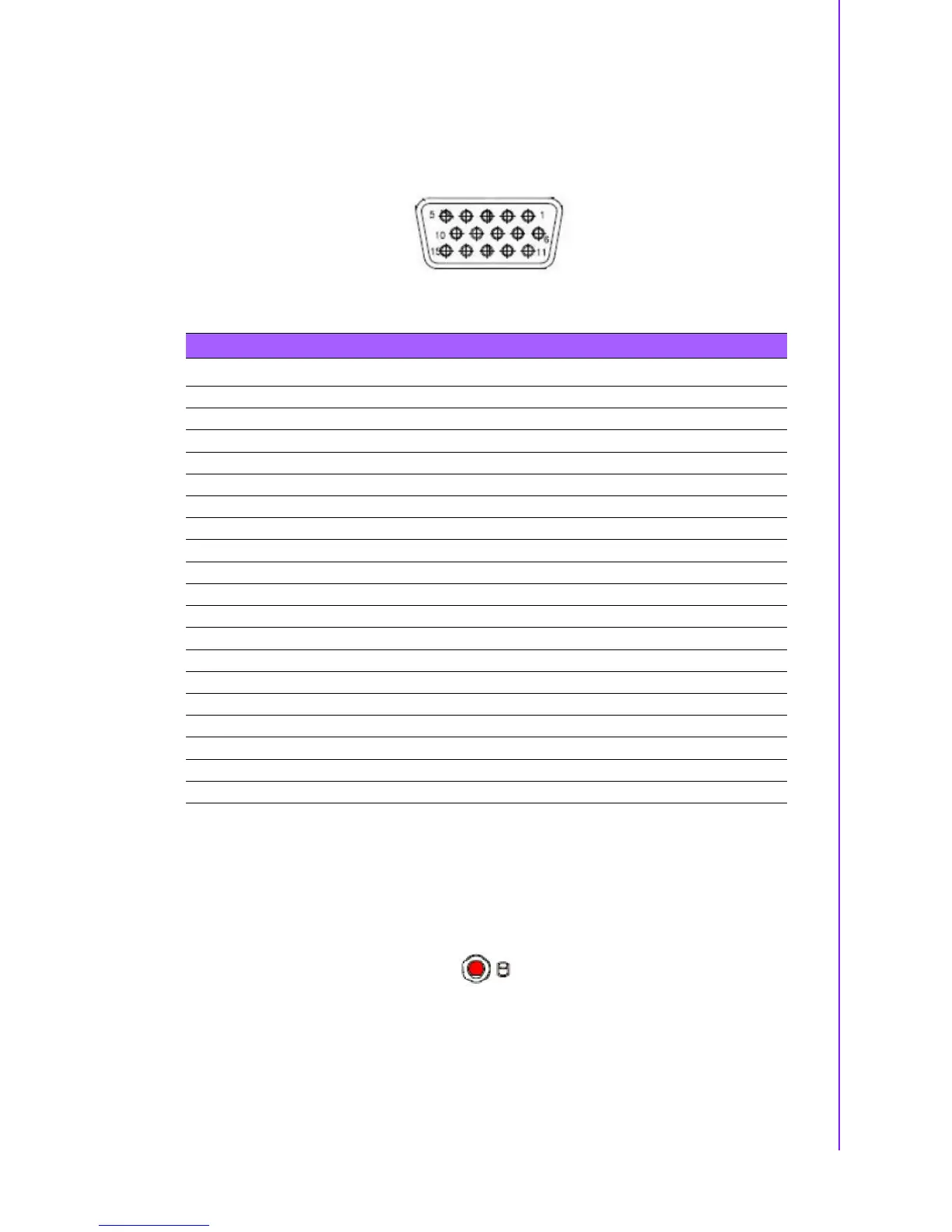

Figure 2.23 VGA Connector
NC represents “No Connection”.
2.5.8 HDD LED Indicators
ARK-1124U provides one LED on the front panel that indicates HDD and compact
flash disk status.
Figure 2.24 HDD LED Indicators
Table 2.11: VGA Connector Pin Definition
Pin Signal Name
1 VGA_z_R
2 VGA_z_G
3 VGA_z_B
4 VGA_z_SPC
5GND
6GND_RGB
7GND_RGB
8GND_RGB
9+V5
10 GND
11 VGA_z_SPD
12 VGA_z_DDAT
13 VGA_z_HS
14 VGA_z_VS
15 VGA_z_DCLK
16 NC
17 NC
18 GND_IO
19 GND_IO
