 Second Super I/O Configuration (SCH3106)

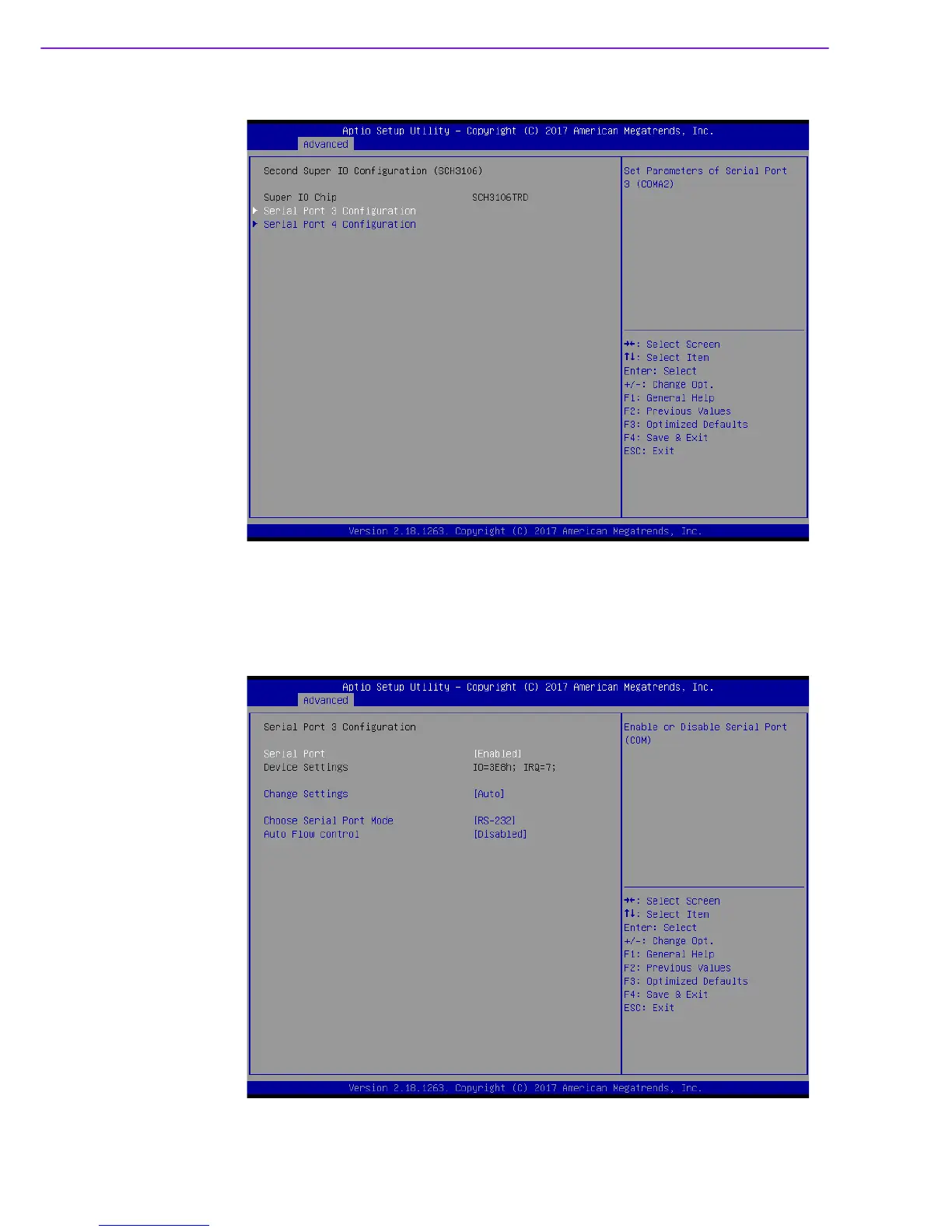

Figure 3.7 Second Serial Port Configuration(SCH3106)
– Serial Port 3 Configuration
Set Parameters of Serial Port 3 (COMA2).
– Serial Port 4 Configuration
Set Parameters of Serial Port 4 (COMB2).
Figure 3.8 Serial Port Settings (Port3)
