13 ARK-1124 User Manual
Chapter 2 H/W Installation

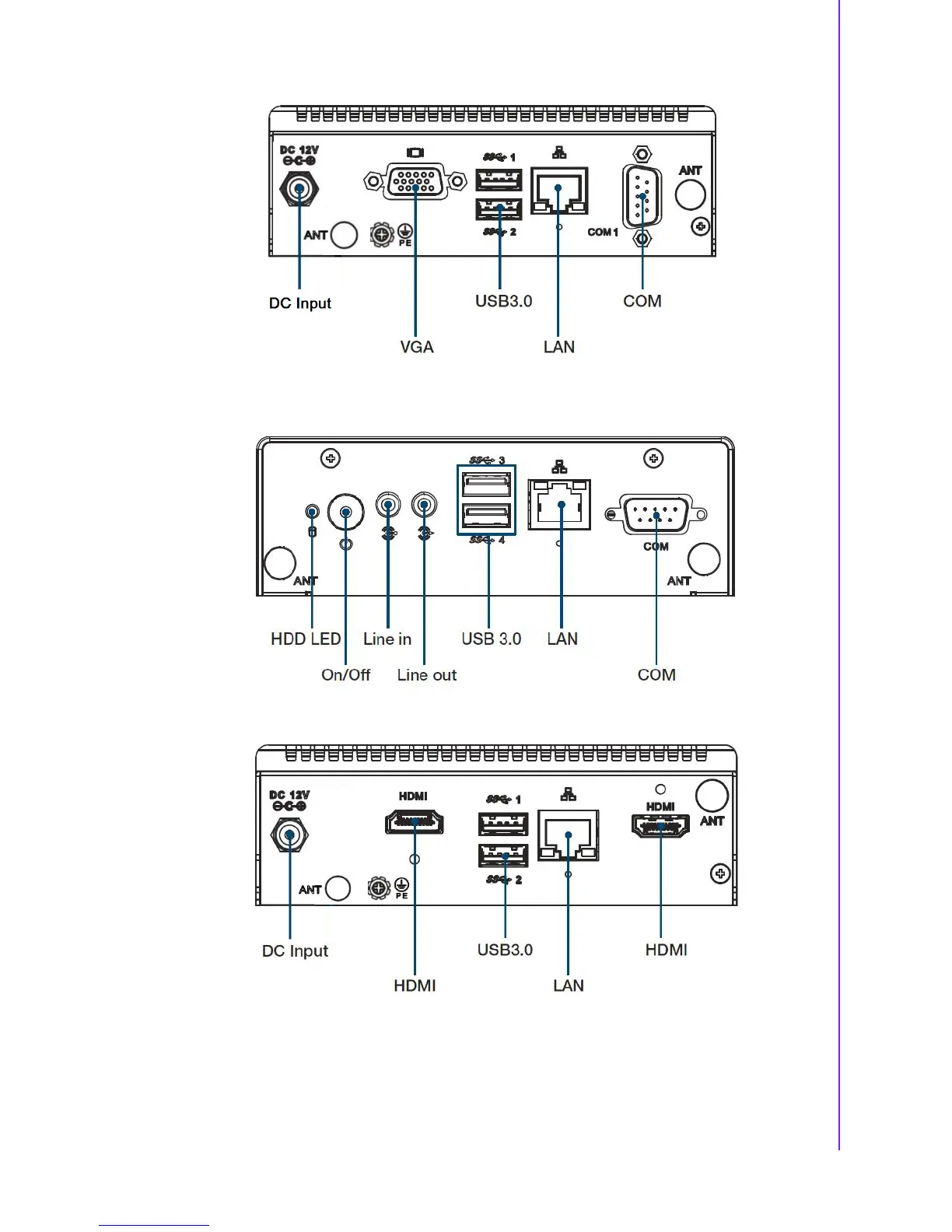

Figure 2.5 ARK-1124U Rear View
ARK-1124H
Figure 2.6 ARK-1124H Front View
Figure 2.7 ARK-1124H Rear View
