Advantech ARK-1124 - Page 39

27 ARK-1124 User Manual
Chapter 2 H/W Installation

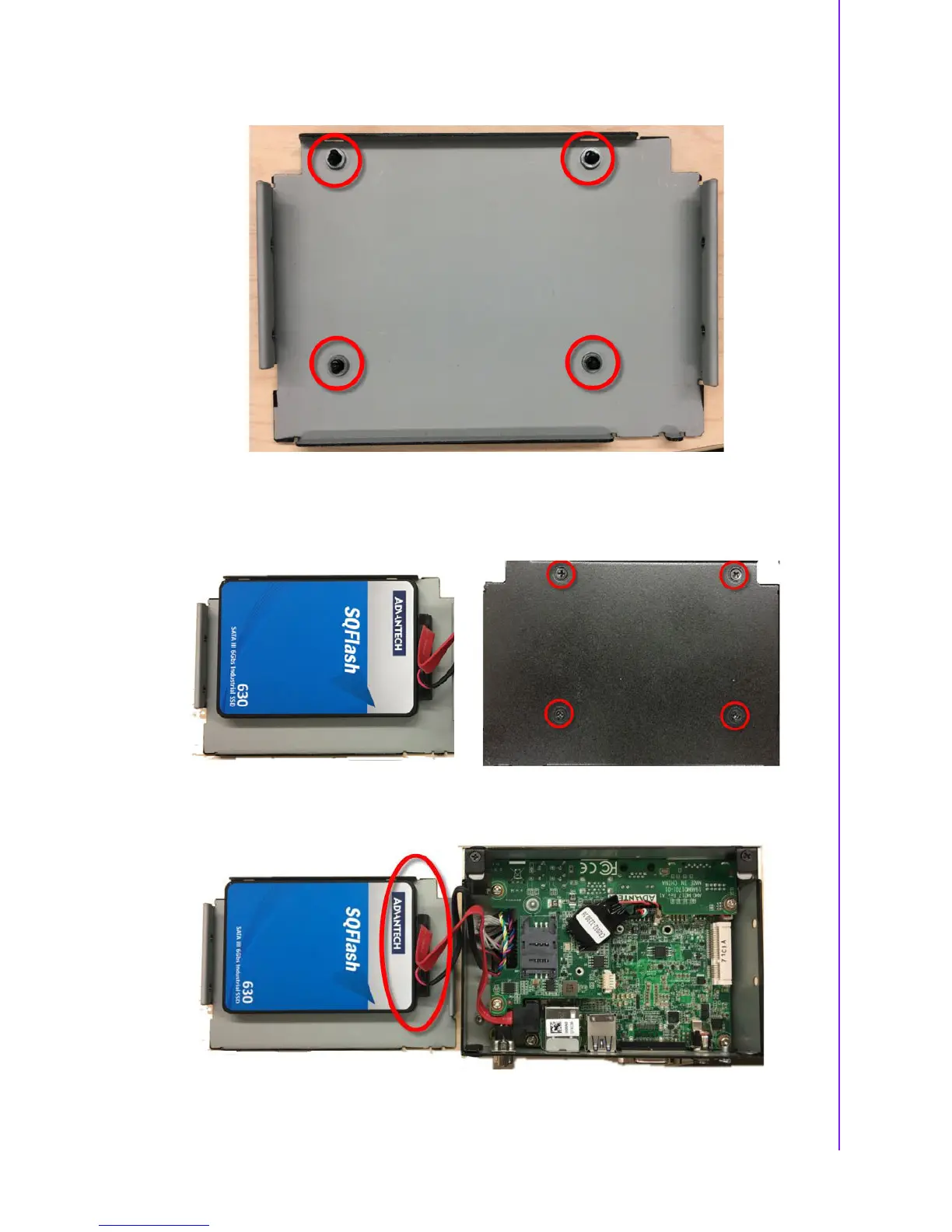

3. Remove the four snap rivets from the bottom cover.
4. Secure 2.5" SATA HDD onto the bottom cover. The screws are in the accessory
box.
5. Connect SATA signal and power cable to the 2.5" SATA HDD.
