ARK-1124 User Manual 34
5. Stack ARK plus module with system, and screw two screws each rear side.
6. Recover bottom cover, and screw two screws each rear side.

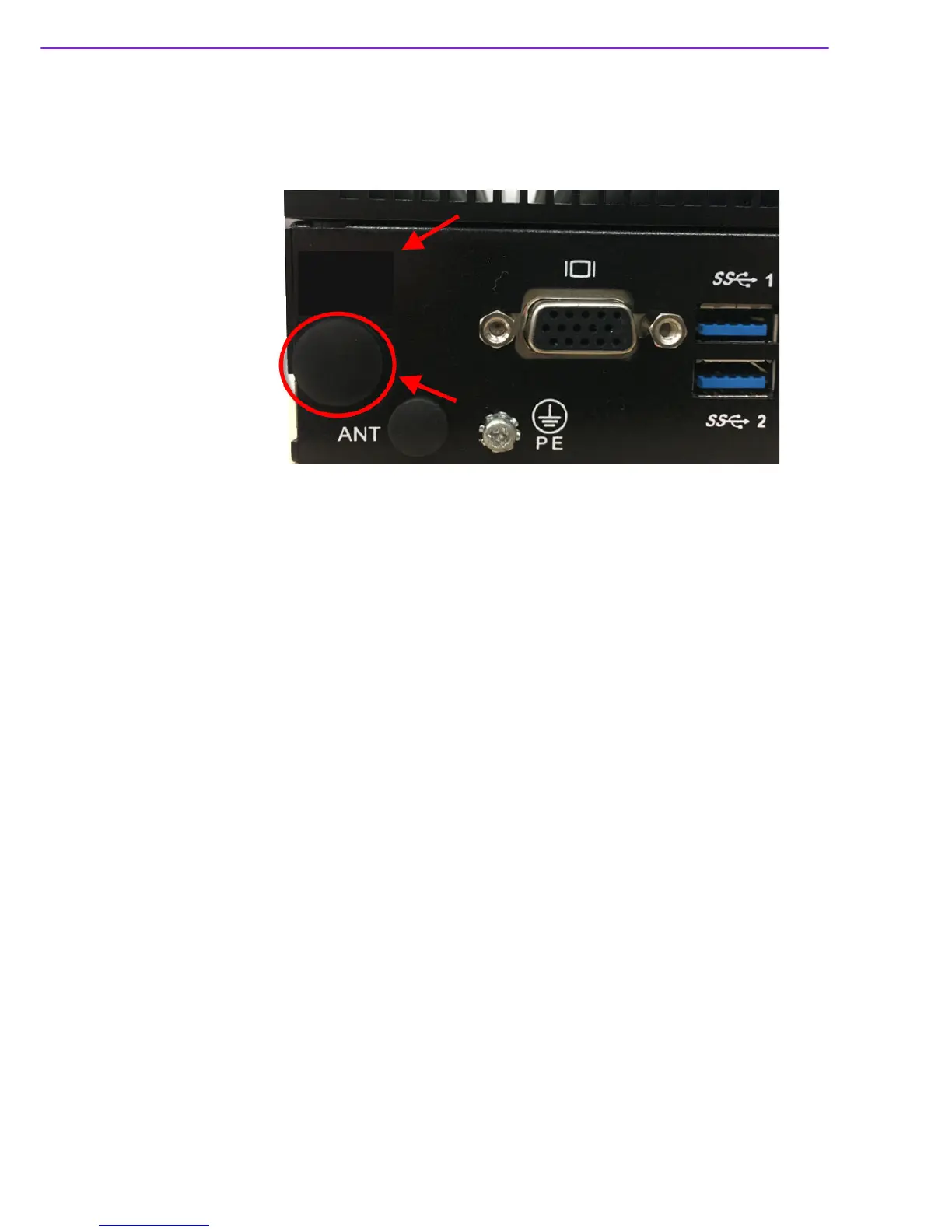

7. Stick black Mylar on 12V DC print, and put DC jack cover on the hold in original
DC jack position.
8. Finished.
