Advantech ARK-1550 - Mechanical Specifications; Dimensions of ARK-1550; Weight of ARK-1550; System Power Requirements

ARK-1550 User Manual 4
1.4 Mechanical Specification
1.4.1 Dimensions
 223 x 46.6 x 133.0 mm (8.69" x 1.81" x 5.18")

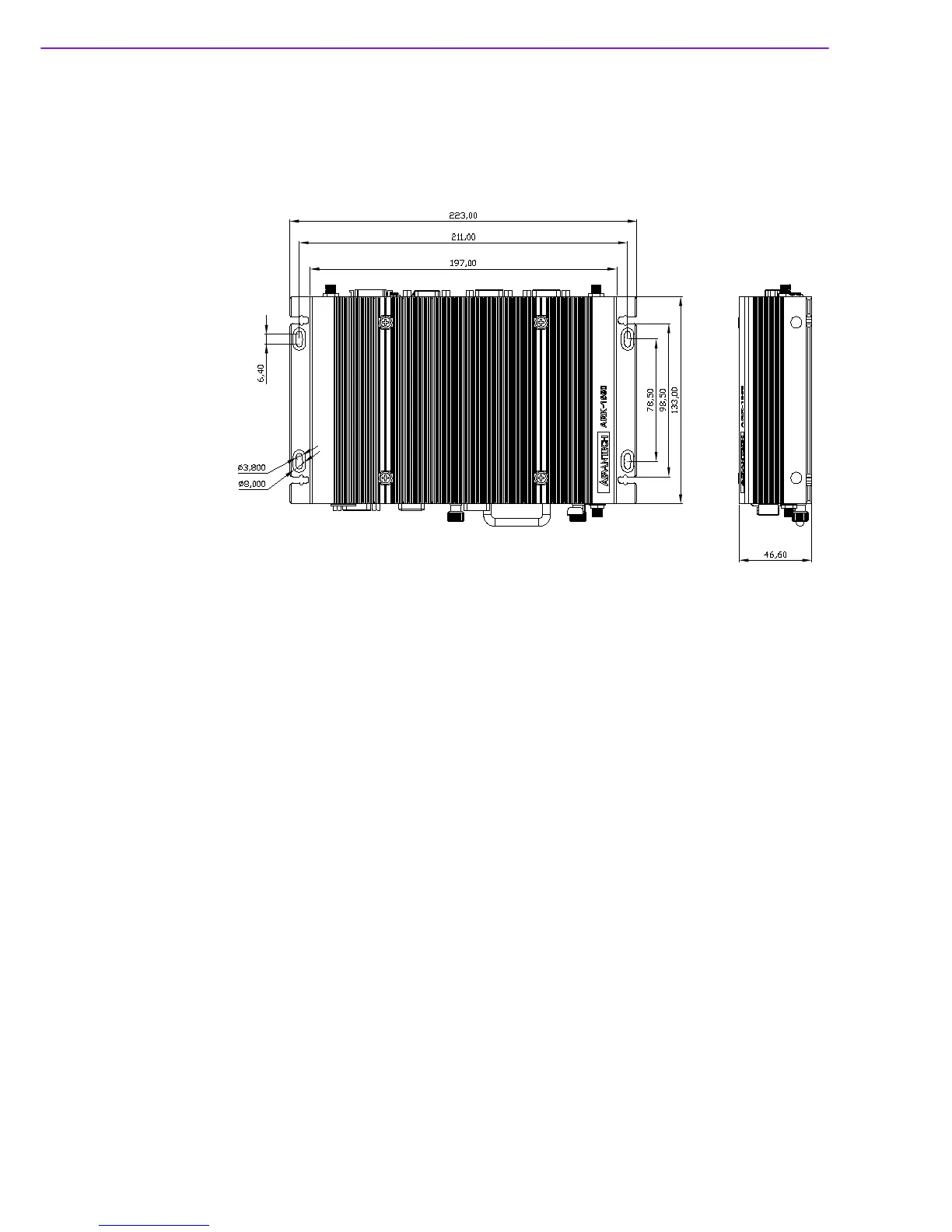

Figure 1.1 ARK-1550 Mechanical dimension drawing
1.4.2 Weight
 1.9 kg (4.18 lbs)
1.5 Power Requirement
1.5.1 System Power
 Minimum power input: DC 12 V/5 A 60 W
1.5.2 RTC Battery
 Typical Voltage: 3.0 V
 Normal discharge capacity: 210 mAh
