2.1 Introduction
The following sections show the internal jumper settings and the external connectors
and pins assignment for applications.
2.2 Jumpers
2.2.1 Jumper List
The ARK-1550 has a number of jumpers that allow you to configure your system to
suit your application. The table below lists the functions of the various jumpers.
2.2.2 Jumper Settings
Cards can be configured by setting jumpers. A jumper is a metal bridge used to close
an electric circuit. It consists of two metal pins and a small metal clip (often protected
by a plastic cover) that slides over the pins to connect them. To close a jumper, you
connect the pins with the clip. To open a jumper, you remove the clip. Sometimes a
jumper will have three pins, labeled 1, 2 and 3. In this case you would connect either
pins 1 and 2, or 2 and 3.

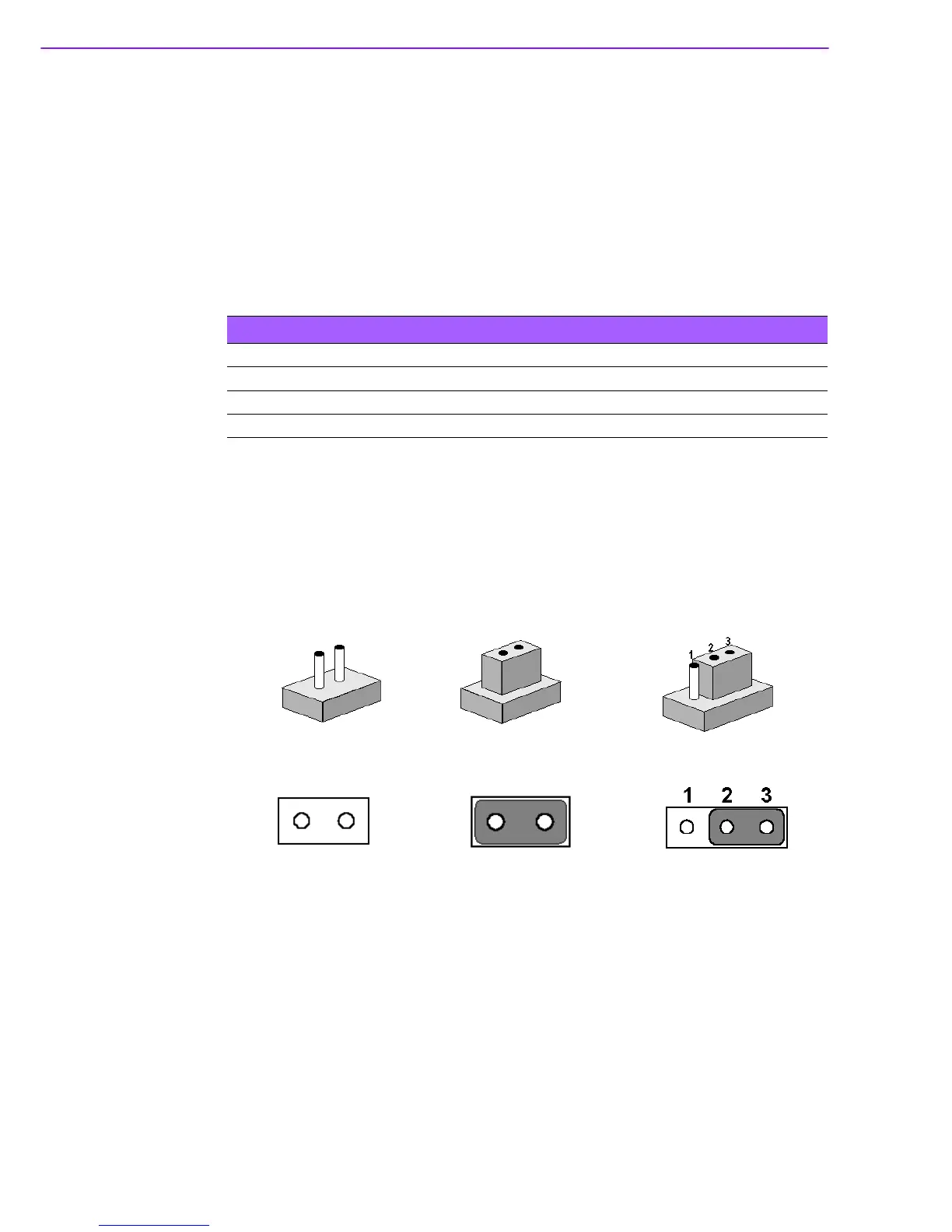

The jumper settings are schematically depicted in this manual as follows.
A pair of needle-nose pliers may be helpful when working with jumpers. If you have
any doubts about the best hardware configuration for your application, contact your
local distributor or sales representative before you make any changes. Generally, you
simply need a standard cable to make most connections.
Jumpers & Switches
J2 Auto Power On Setting
J3 LCD Power
SW2 mPCIe & mSATA selection
SW3 Clear CMOS
