31 ARK-1550 User Manual
Chapter 3 BIOS settings
3.2.2.7 SATA Configuration

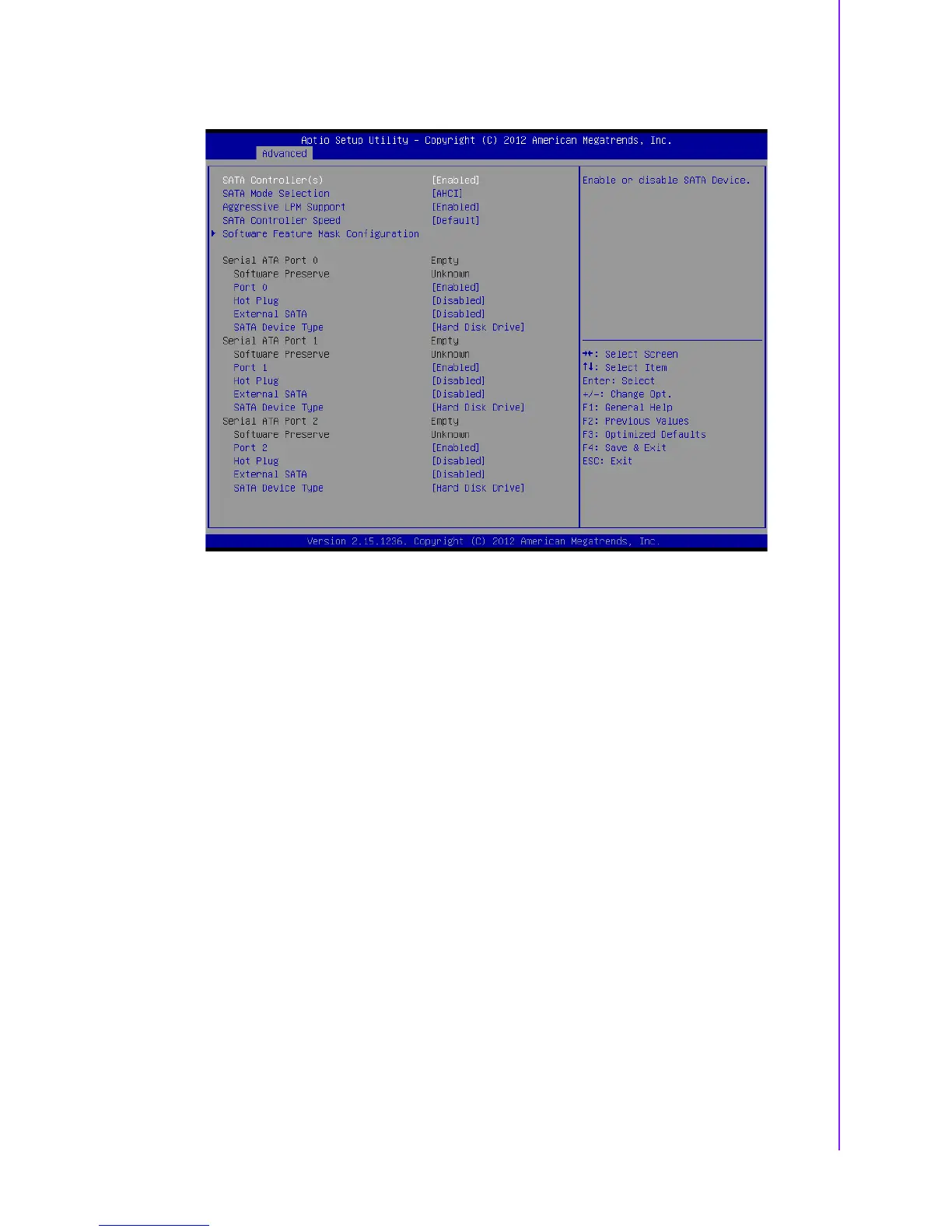

Figure 3.10 SATA Configuration
 SATA Controller(s)
This item allows users to enable or disable the SATA controller(s).
 SATA Mode Selection
This item allows users to select mode of SATA controller(s).
 SATA Controller(s)
This item allows users to enable or disable the SATA controller(s).
 SATA Mode Selection
This item allows users to select mode of SATA controller(s).
 Aggressive LPM Support
This item allows users to enable or disable the Aggressive LPM Support.
 SATA Controller Speed
This item allows users to select mode of SATA Controller Speed.
 Serial ATA Port 1/2/3
This item allows users to enable or disable the SATA Port.
 Hot Plug
This item allows users to enable or disable the Hot Plug.
 External SATA
This item allows users to enable or disable the External SATA.
 SATA Device type
This item allows users to select mode of SATA Device type.
