ARK-1550 User Manual 12
2.4.4 VGA Connector
The ARK-1550 provides a high resolution VGA interface connected by a D-sub 15-
pin connector to support a VGA CRT monitor. It supports display resolution of up to
1920 x 1200 with 60 Hz.

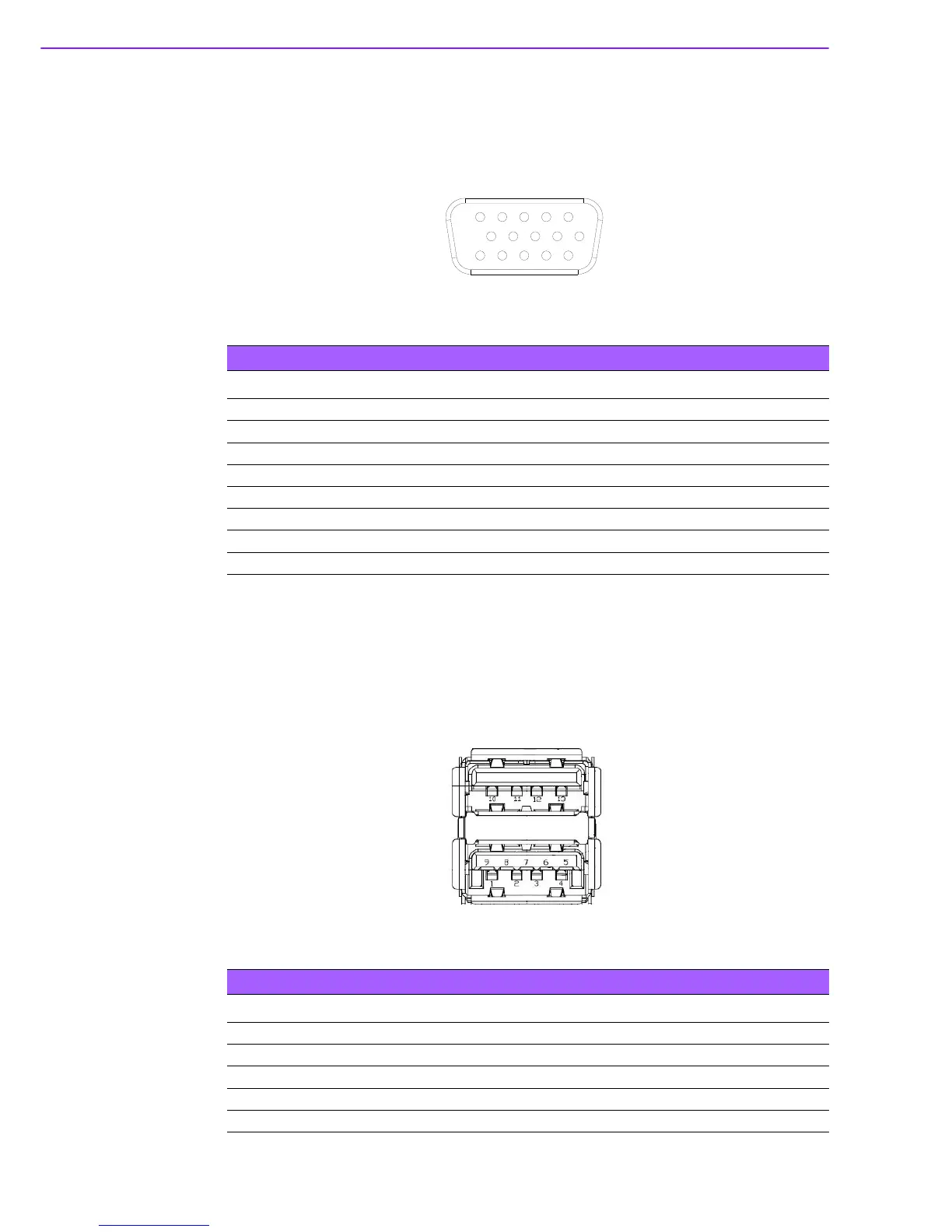

Figure 2.6 VGA Connector
2.4.5 USB Connectors
The ARK-1550 provides up to four USB interface connectors – 2 x USB 2.0 & 2 x
USB 3.0, which give complete Plug & Play. The USB interface is compliant with USB
UHCI, Rev. 2.0 & 3.0. The USB interface supports Plug and Play, which enables you
to connect or disconnect a device whenever you want, without turning off the com-
puter.
Figure 2.7 USB Connector [Upper (black): USB2.0 / Down (blue): USB 3.0]
Table 2.6: VGA Connector Pin Assignments
Pin Signal Name Pin Signal Name
1Red 2 Green
3 Blue 4 NC
5 GND 6 GND
7 GND 8 GND
9NC 10GND
11 NC 12 DDC Date
13 H-SYNC 14 V-SYNC
15 DDC Clock
1
5
6
11
10
15
Table 2.7: USB Connector Pin Assignments
Pin Signal Name Pin Signal Name
1+5V 2 D-
3D+ 4 GND
5 SSRX- 6 SSRX+
7 GND 8 SSTX-
9 SSTX+ 10 +5V
