3.2.2.2 PCI Express Device Register Settings

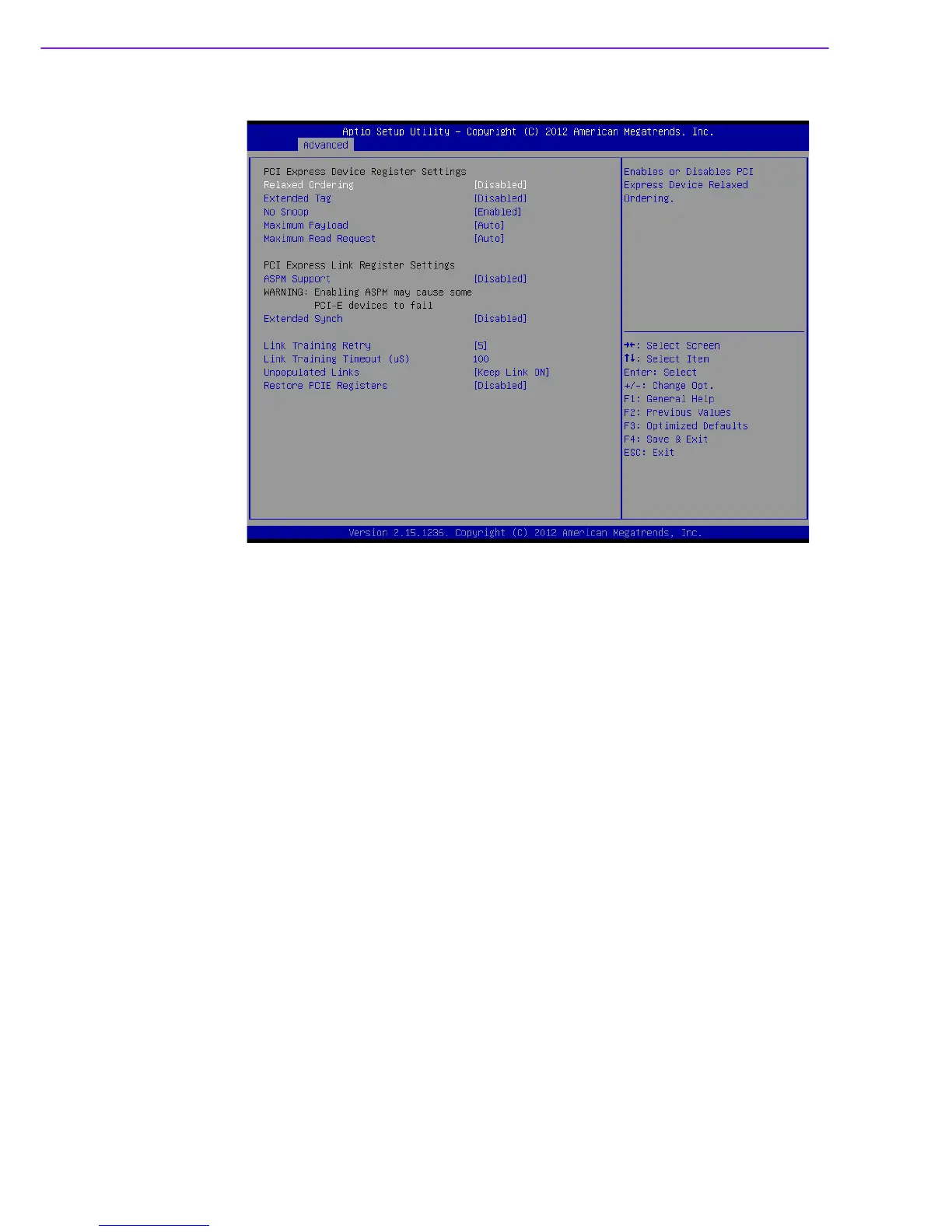

Figure 3.5 PCI Express Device Register Settings
 Relaxed Ordering
Enable or disable Relaxed Ordering
 Extended Tag
Enable or disable Extended Tag
 No Snoop
Enable or disable No Snoop
 Maximum Payload
This item allows users to set the Maximum Payload
 Maximum Read Request
This item allows users to set the Maximum Read Request
 ASPM Support
Enable or disable ASPM Support
 Extended Synch
Enable or disable Extended Synch
 Link Training Retry
This item allows users to set the Link Training Retry
 Link Training Timeout (uS)
This item allows users to set the Link Training Timeout (uS)
 Unpopulated Links
This item allows users to set the Unpopulated Links
 Restore PCIE Registers
Enable or disable Restore PCIE Registers
