Advantech ARK-1550 - Auto Power on Setting (J2); LCD Power (J3); Pcie & Msata Selection (SW2)

9 ARK-1550 User Manual
Chapter 2 Hardware installation

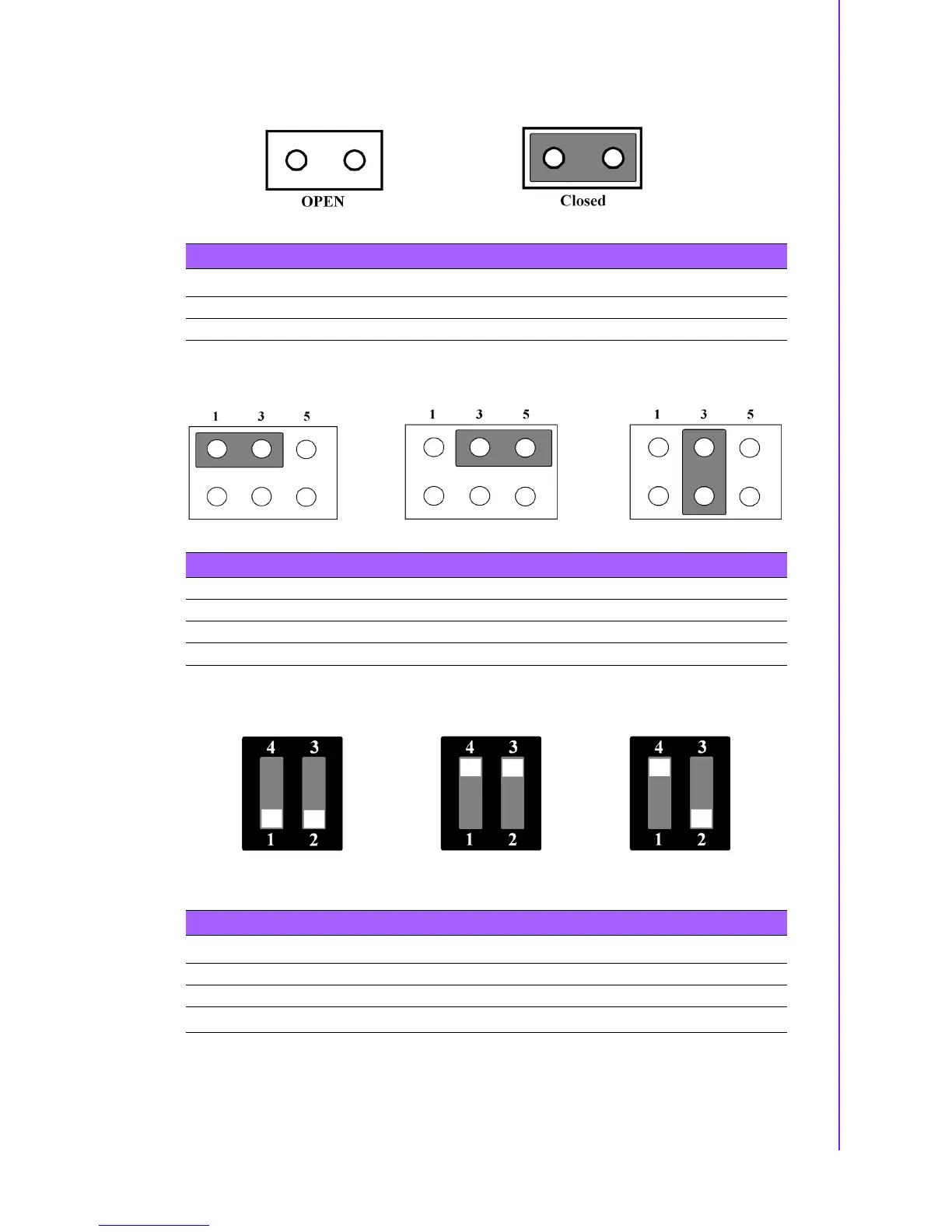

2.2.3 Auto Power On Setting (J2)
2.2.4 LCD Power (J3)
(1-3)* (3-5) (3-4)
2.2.5 PCIe & mSATA Selection (SW2)
(1 & 2)* (3 & 4) (2 & 4)
1
Some of mSATA or mPCIe modules can't be recognized correctly through the Auto
Detect setting. We suggest you use mSATA or mPCIe setting directly if you meet any
compatibility problems.
Table 2.1: Auto Power On Setting (J2)
Setting Function
NC Power Button for Power On
(1-2)* Auto Power On (default)
Table 2.2: LCD Power (J3)
Setting Function
(1-3)* +3.3V (default)
(3-5) +5V
(3-4) +12V
Table 2.3: mPCIe & mSATA Selection (SW2)
Setting Function
(1 & 2) mSATA
(3 & 4) mPCIe
(2 & 4)
Auto Detect
1
(default)
