17 ARK-1550 User Manual
Chapter 2 Hardware installation
2.5 Optional Peripheral Installation
2.5.1 RAM Installation

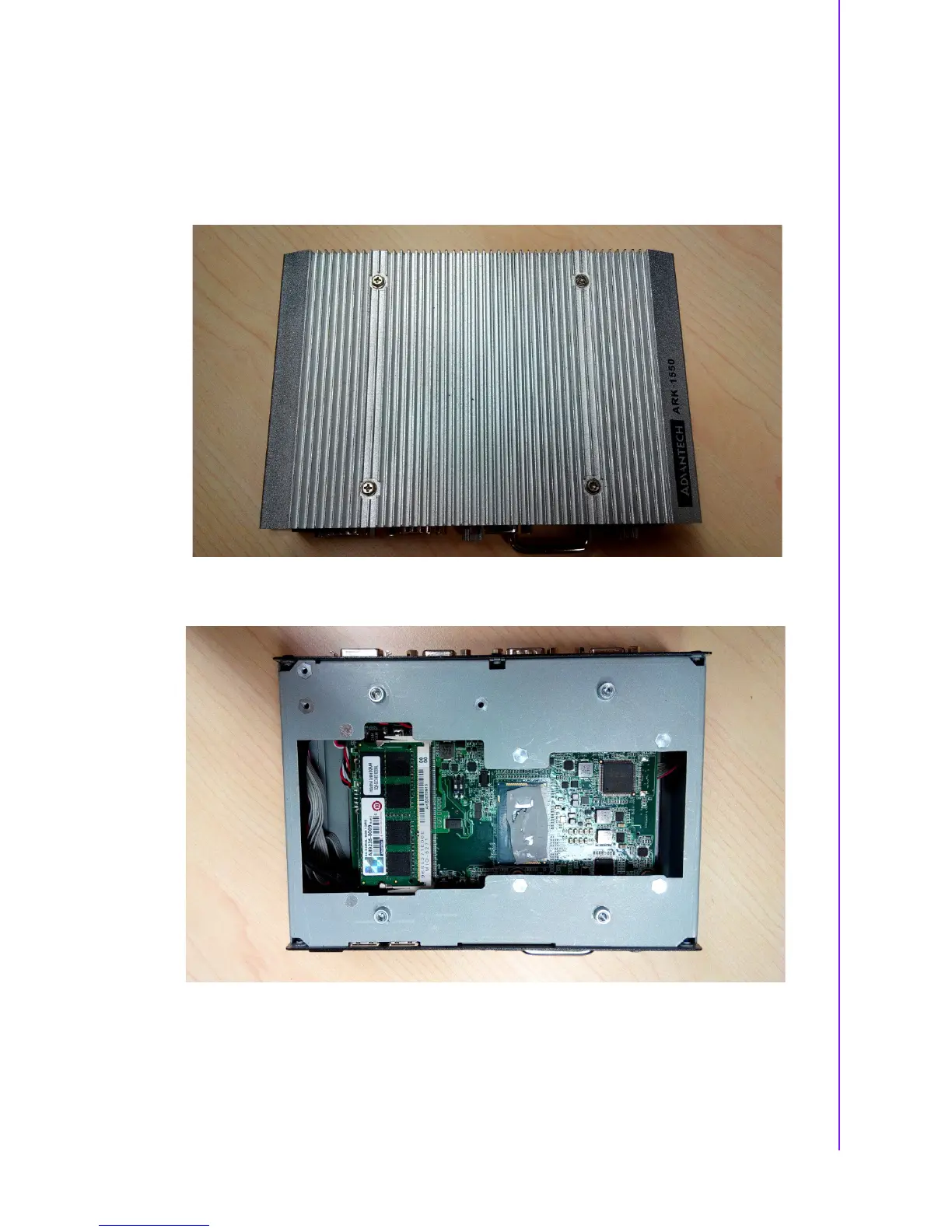

1. Remove top cover screws * 4pcs and right/left side screws * 4pcs.
2. Remove top cover and locate memory socket.
3. Install memory. (memory is optional, not in standard shipment)
