19 ARK-1550 User Manual
Chapter 2 Hardware installation
2.5.3 mSATA Installation

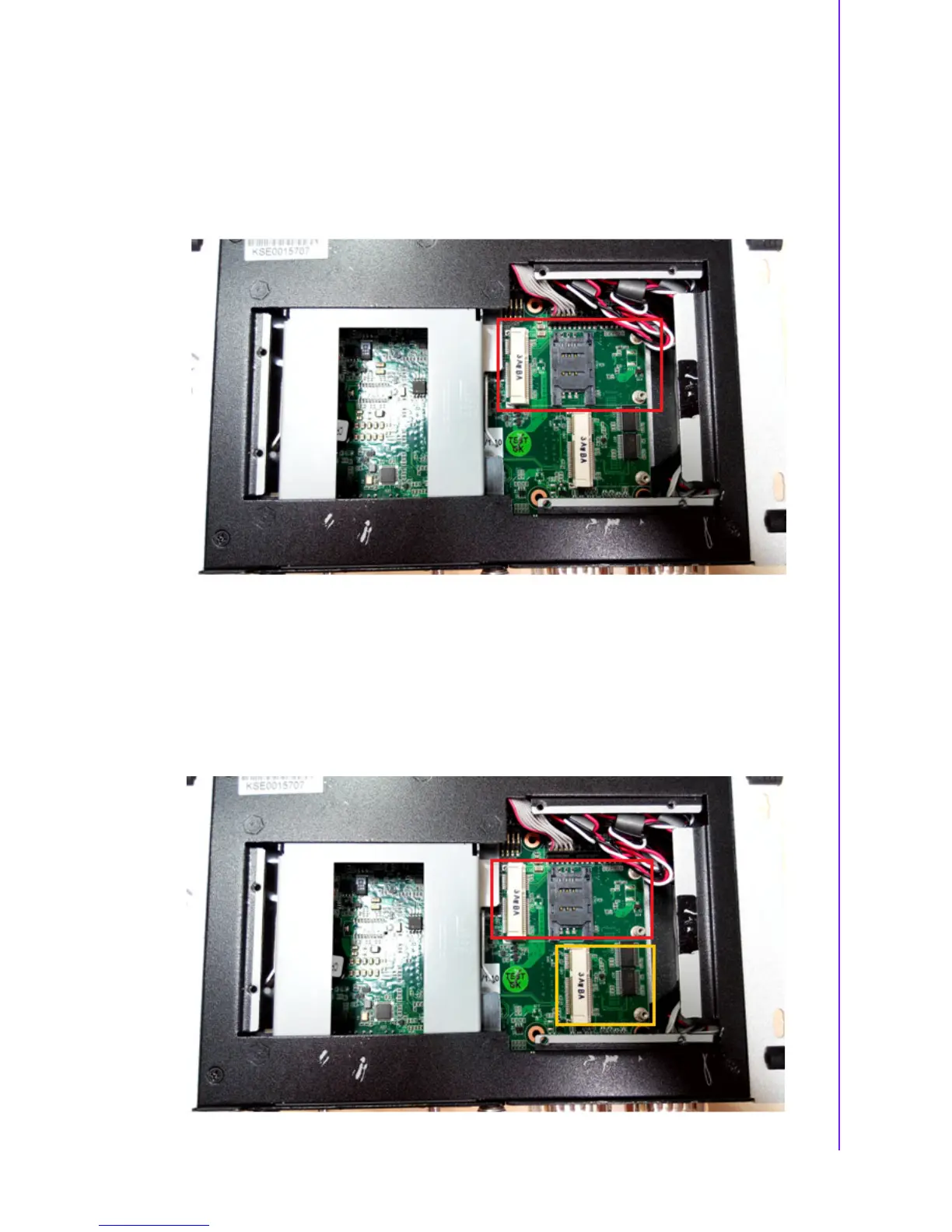

1. Remove the bottom cover screws and then remove the bottom cover.
2. mSATA storage can be installed in the full-size mini PCIe slot marked in red.
(screws are included in the accessory box)
3. Replace bottom cover and secure the bottom cover screws.
** mSATA storage and 3G module cannot be installed at the same time.
2.5.4 WIFI / 3G Module Installation
1. Remove the bottom cover screws and then remove the bottom cover.
2. The 3G module can be installed in the full-size mini PCIe slot marked in red.
(screws are included in accessory box)
3. The WIFI module can be installed in the half-size mini PCIe slot marked in yel-
low. (screws are included in the accessory box)
4. Replace the bottom cover and secure the bottom cover screws.
