2.1.4 LED Indicators

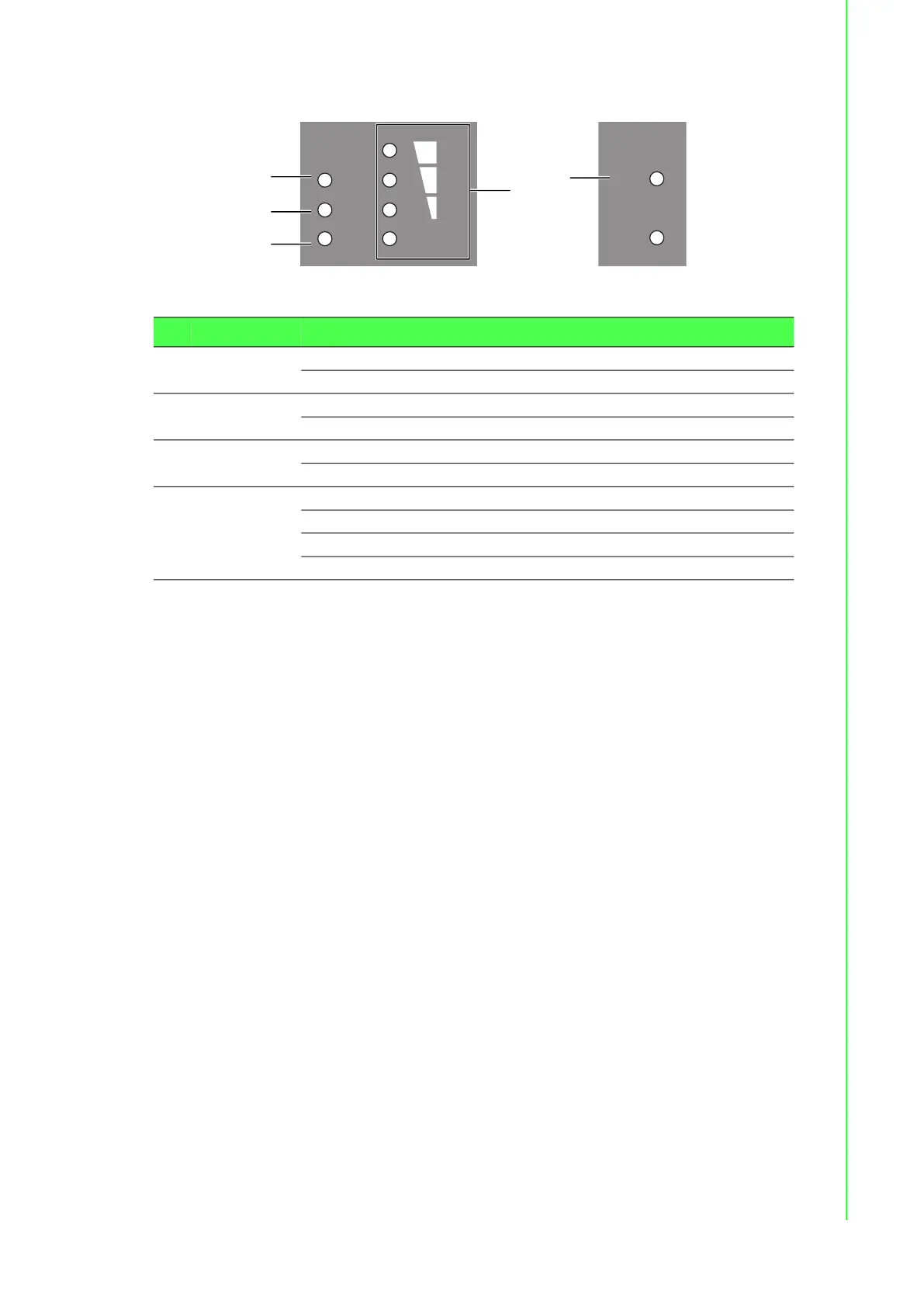

Figure 2.4 System LED Panel
No. LED Name LED Color Description
1.
Status Amber, blinking System is ready
Off System is not functioning
2.
P2 Green Power 2 is on
Off Power 2 is off or power error condition exists
3.
P1 Green Power 1 is on
Off Power 1 is off or power error condition exists
4.
WLAN Signal
Strength
Off No signal available
Green (One) Signal quality is less than -80 dBm
Green (Two) Signal quality is between -80 dBm and -60 dBm
Green (Three) Signal quality is more than -60 dBm
P1 WLAN
P2
SYS
4
1
2
3
TX
RX
1
5
