60 EKI-6233BN User Manual
5.2.2 Input the IP address
Confirm that the Telnet console configuration works ok. Be sure that your host PC
Ethernet network IP domain is as same as the EKI-6233BN device, and the Telnet
TCP port number is “23”.

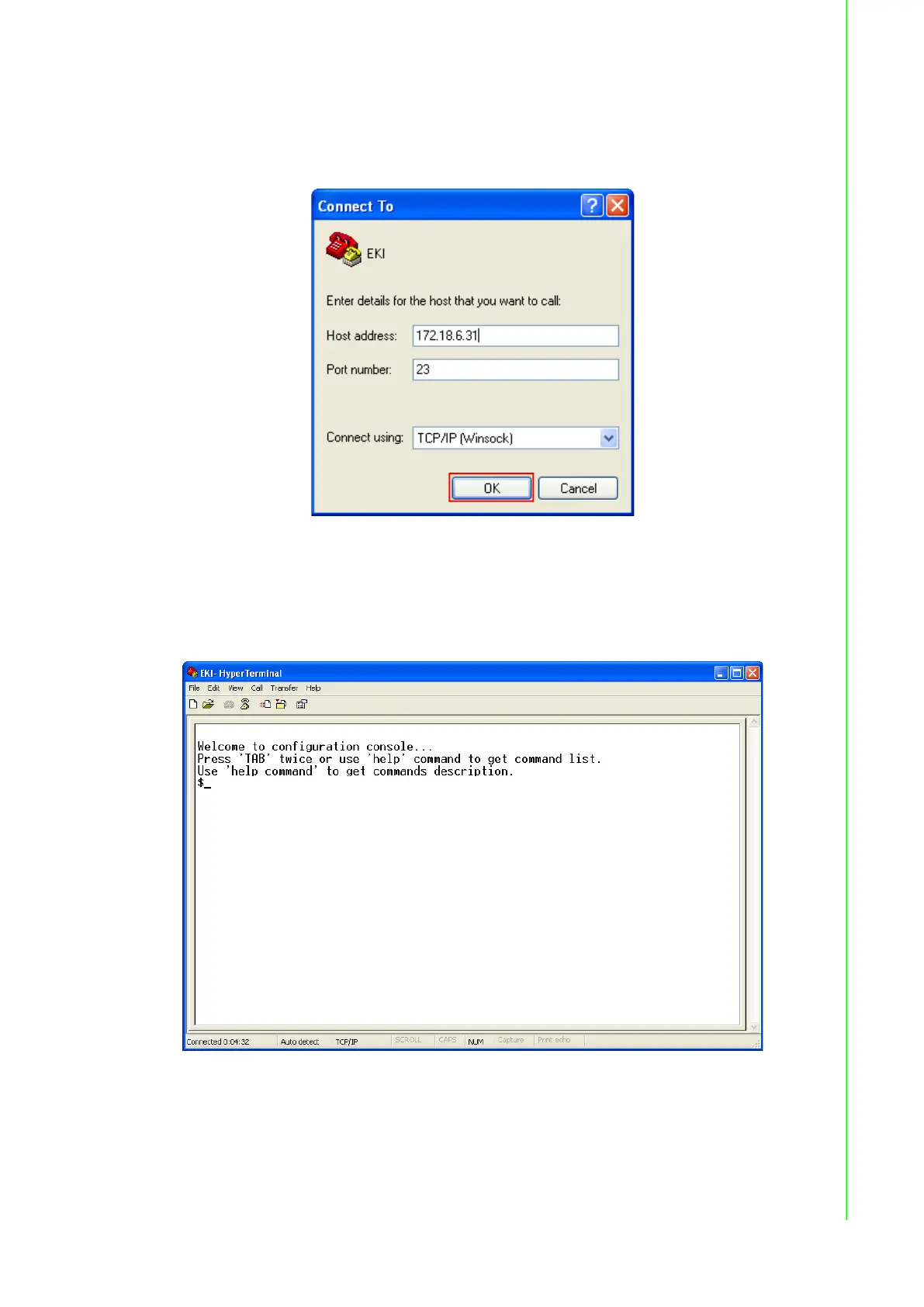

Figure 5.2 Creating a Telnet Connection
5.2.3 Connection Success
After connecting to the device in HyperTerminal console, a welcome greeting
displays.
Figure 5.3 Telnet Connection Console
At the command prompt, you can type a “help” followed by the Enter button, or <Tab>
twice, to display the command list.
You can toggle between the different command menu options.
