12 EKI-6233BN User Manual
11. Insert the screws through the bracket and tighten to secure the device to the
wall.

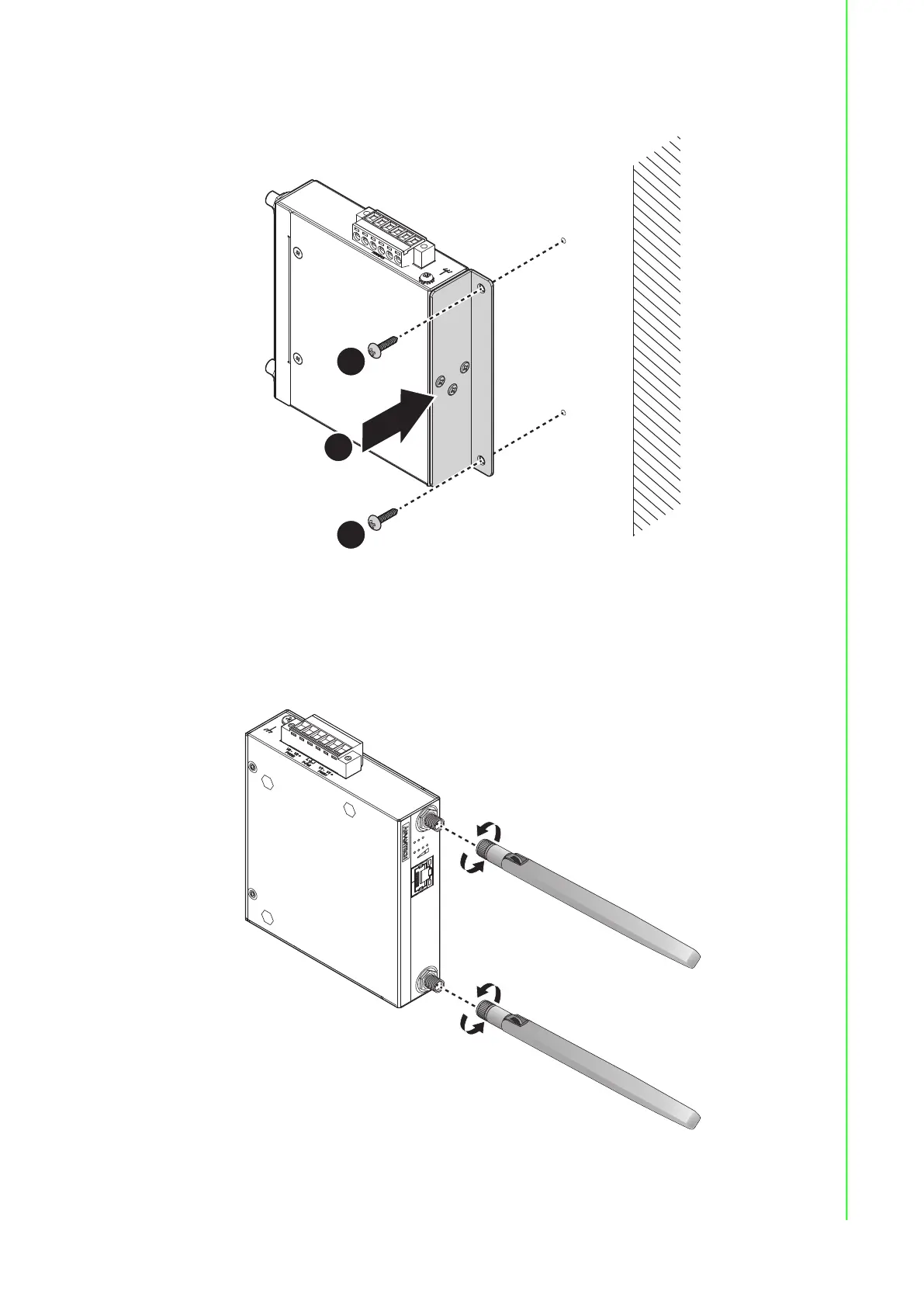

Figure 2.9 Wall Mount Installation
12. Once the device is installed on the wall connect the required cables.
2.2.3 Wireless Connection
1. Connect the antenna by screwing the antenna connectors in a clockwise
direction.
Figure 2.10 Installing the Antenna
2. Position the antenna for optimal signal strength.
2
2
1
P1P1 WLAN
P2 P2
SYS SYS
EKI-6233BN
