10 EKI-6233BN User Manual

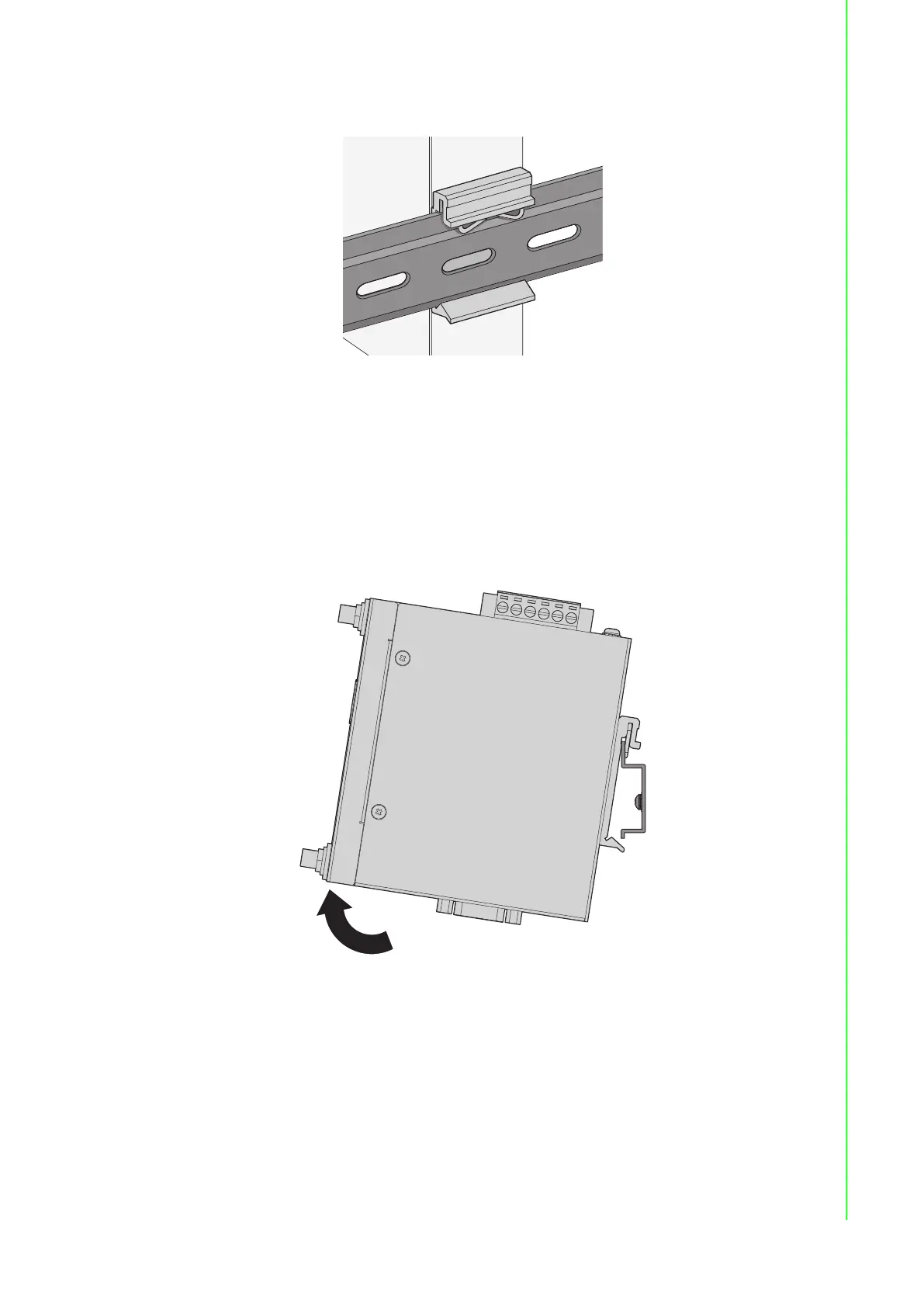

See the following figure for an illustration of a completed DIN installation
procedure.
Figure 2.6 Correctly Installed DIN Rail Kit
3. Grasp the bottom of the gateway and slightly rotate it upwards. If there is
resistance, the gateway is correctly installed. Otherwise, re-attempt the
installation process from the beginning.
2.2.1.2 Removing the DIN-Rail Mounting Kit
1. Ensure that power is removed from the gateway, and disconnect all cables and
connectors from the front panel of the gateway.
2. Push down on the top of the DIN rail clip release tab with your finger. As the clip
releases, lift the bottom of the gateway, as shown in the following illustration.
\
Figure 2.7 Removing the DIN-Rail
