9
MIO-5250 User Manual
Chapter 2
Hardware
Installation

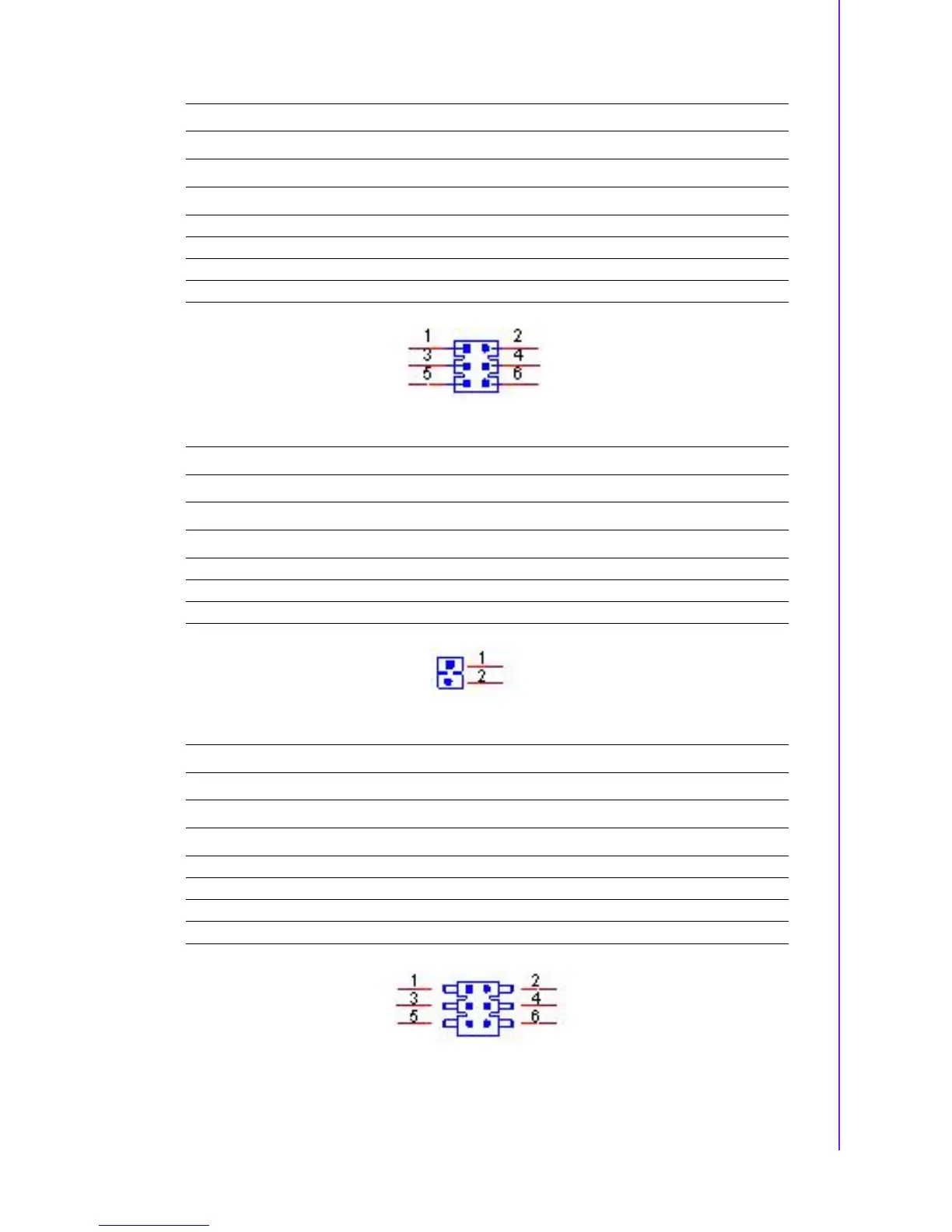

J2
48 bits L
VD
S2 Power
Part Number
165
3003260
Footprint
HD_3x2P_79
Description
PIN HEADER 3x2P 2.0
mm 180D(M) SMD 21
N22050
Setting
Function
(1-3)*
+3.3V
(3-5)
+5V
(3-4)
+12V
J3
Auto Power On Setting
Part Number
165
3002101
Footprint
HD_2x1P_79_D
Description
PIN HEADER 2*1P 180D(M)
SQUARE 2.0mm DIP W/O Pb
Setting
Function
NC
Power Button for Power On
(1-2)*
Auto Power On
J4
COM2 Setting
Part Number
165
3003260
Footprint
HD_3x2P_79
Description
PIN HEADER 3x2P 2.0
mm 180D(M) SMD 21
N22050
Setting
Function
(1-2)*
RS232
(3-4)
RS485
(5-6)
RS422
18
20
Table of Contents
Default Chapter
3
Declaration of Conformity
3
Ordering Information
5
Packing List
5
Optional Accessories
6
Safety Instructions
6
Table of Contents
9
Chapter 1 General Information
11
Introduction
12
Product Specifications
12
Chipset
13
Functional Specifications
13
Mechanical Specifications
15
Electrical Specifications
15
Environmental Specifications
16
Chapter 2 Hardware Installation
17
Jumpers
18
Jumper List
18
Jumper Settings
18
Jumper Description
20
Connectors
21
Connector List
21
Mechanical
22
Jumper and Connector Location
22
Board Dimensions
23
Figure 2.5 I/O Connectors Mechanical Drawing
24
Chapter 3 BIOS Settings
25
BIOS Setup
26
Entering Setup
26
Main Setup
27
System Date / System Time
27
Advanced BIOS Features Setup
28
Advantech BIOS Update V1.3
28
ACPI Settings
29
TPM Configuration
30
CPU Configuration
30
SATA Configuration
31
Intel Fast Flash Standby
32
USB Configuration
32
Embedded Controller Configuration
33
Super I/O Configuration
34
AOAC Configuration
35
PPM Configuration
35
Chipset Configuration
36
Host Bridge/Intel IGD Configuration
37
South Bridge
38
Boot Settings
39
Security Setup
40
Save & Exit
41
Save Changes and Exit
41
Discard Changes and Exit
41
Save Changes and Reset
41
Discard Changes and Reset
41
Save Changes
41
Discard Changes
42
Restore Defaults
42
Save User Defaults
42
Restore User Defaults
42
Boot Override
42
Chapter 4 Mioe Installation
43
Appendix A Pin Assignments
45
Appendix B System Assignment
67
System I/O Ports
68
DMA Channel Assignments
68
B.1 System I/O Ports
68
1St MB Memory Map
69
Interrupt Assignments
69
Appendix C Watchdog Timer Sample Code
71
EC Watchdog Timer Sample Code
72
