Advantech MIO-5250 User Manual

27 MIO-5250 User Manual
Chapter 3 BIOS Settings
3.5.1 Host Bridge/Intel IGD Configuration

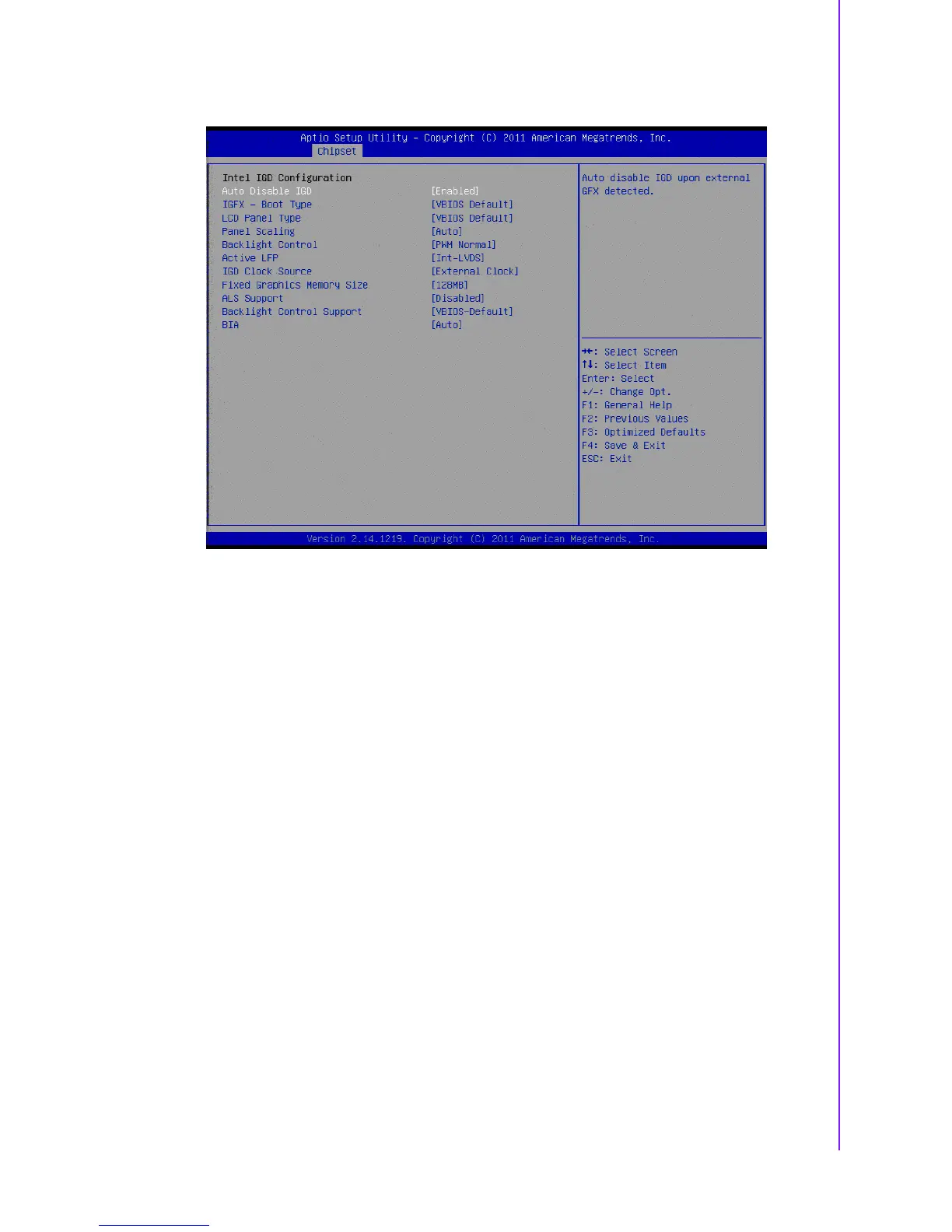

Figure 3.15 Intel IGD Configuration
 Auto Disable IGD
This item allows users to auto disable IGD upon external GFX detected.
 GFX - Boot Type
This item allows users to select which output device during POST.
 LCD Panel Type
This item allows users to select LCD panel by internal graphic device.
 Panel Scaling
This item allows users to select LCD panel scaling by internal graphic device.
 Backlight Control
This item allows users to select backlight control setting.
 Active LFP
This item allows users to select the active LFP configuration.
 2nd LVDS Backlight Control
This item allows users to select 2nd backlight control.
 IGD Clock Source
This item allows users to select IGD clock.
 Fixed Graphics Memory Size
This item allows users to configure fixed graphic memory size.
 ALS Support
This item allows users to select ASL support for ACPI.
 Backlight Control Support
This item allows users to select backlight control support.
 BIA
This item allows users to select BIA with selected aggressiveness level.
