MIO-5250 User Manual 10
2.1.3 Jumper Description
Cards can be configured by setting jumpers. A jumper is a metal bridge used to close
an electric circuit. It consists of two metal pins and a small metal clip (often protected
by a plastic cover) that slides over the pins to connect them. To close a jumper, you
connect the pins with the clip. To open a jumper, you remove the clip. Sometimes a
jumper will have three pins, labeled 1, 2 and 3. In this case you would connect either
pins 1 and 2, or 2 and 3.

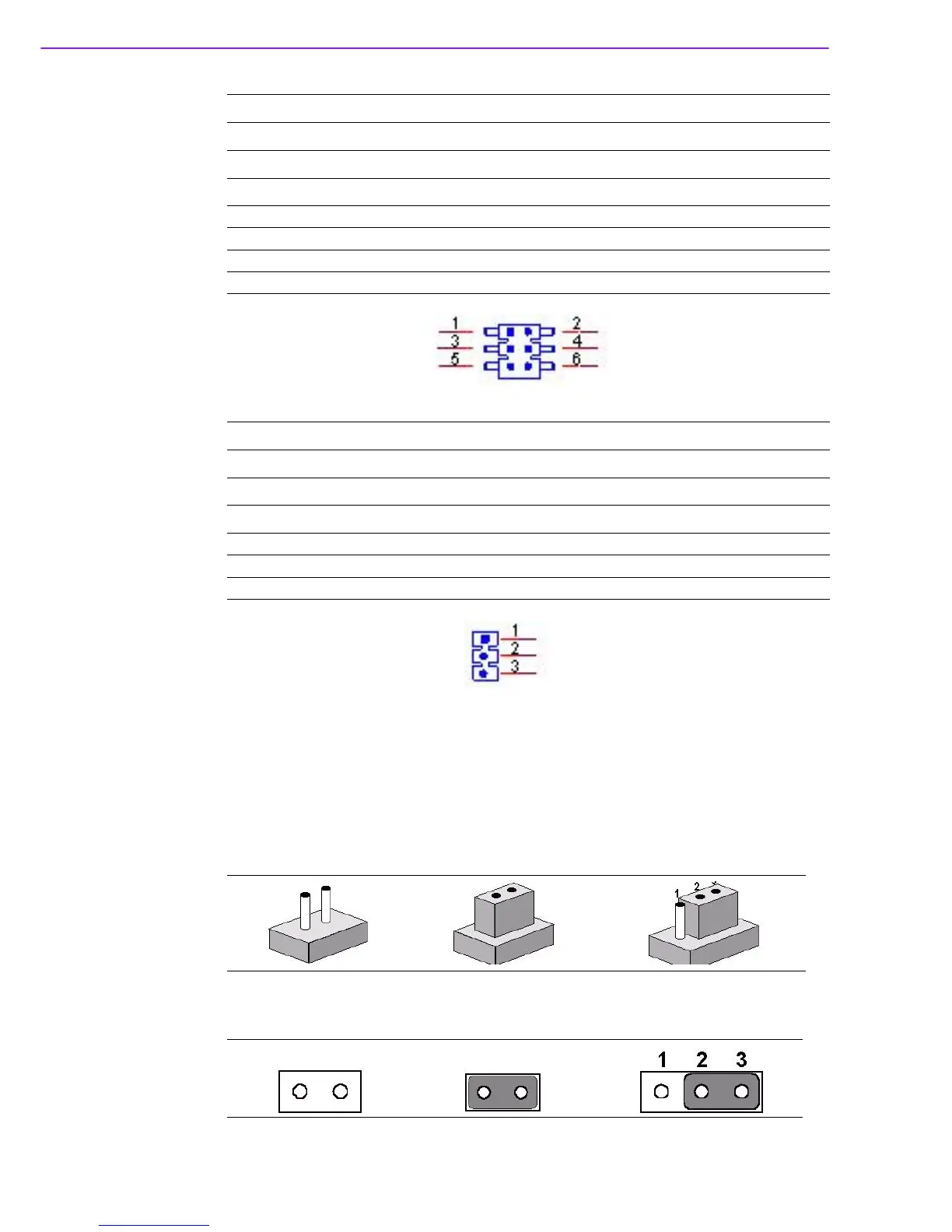

The jumper settings are schematically depicted in this manual as follows.
J5 COM3Setting
Part Number 1653003260
Footprint HD_3x2P_79
Description PIN HEADER 3x2P 2.0mm 180D(M) SMD 21N22050
Setting Function
(1-2)* RS232
(3-4) RS485
(5-6) RS422
J6 Clear CMOS
Part Number 1653003101
Footprint HD_3x1P_79_D
Description PIN HEADER 3x1P 2.0mm 180D(M) DIP 2000-13 WS
Setting Function
(1-2)* Normal
(2-3) Clear COMS
