MIO-5250 User Manual 46

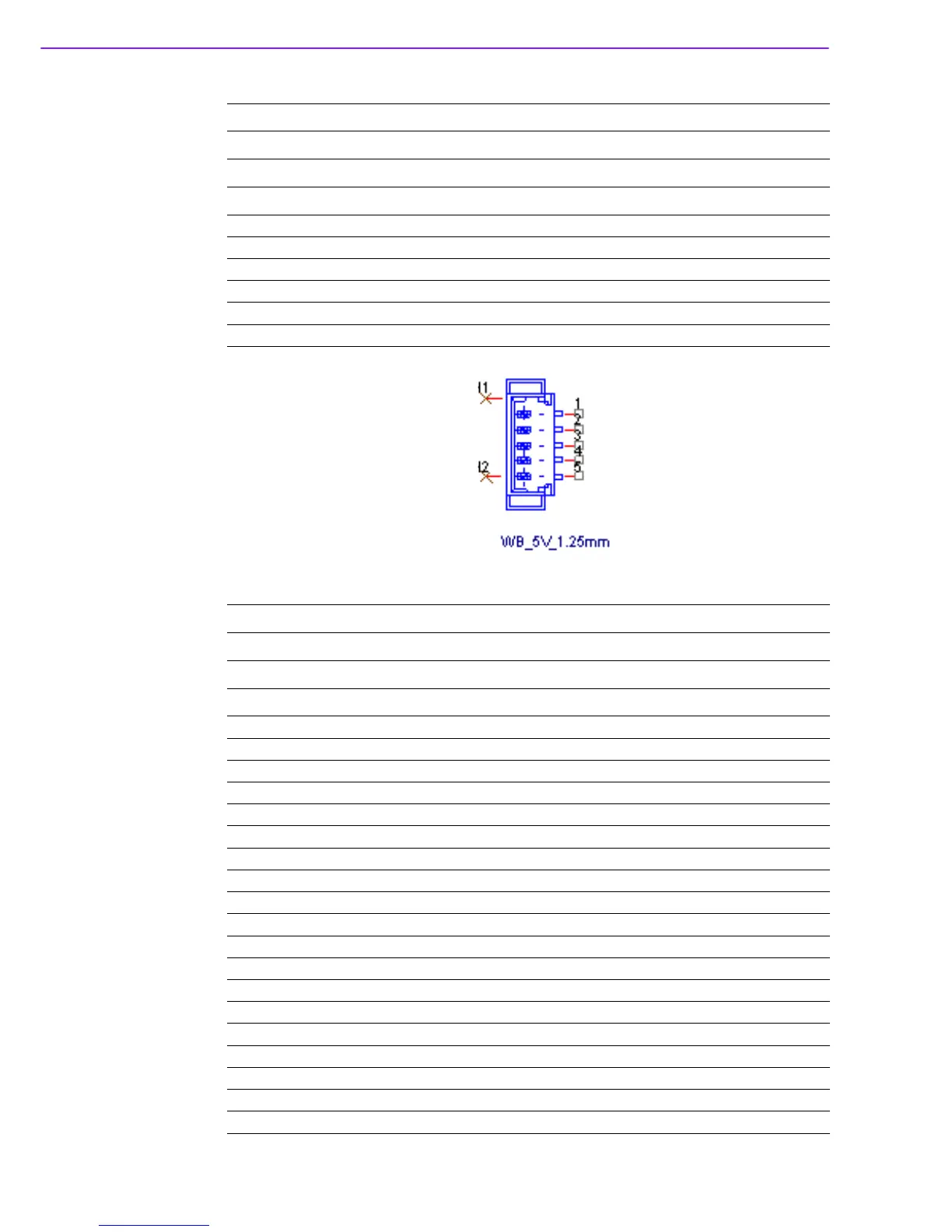

CN22 RS422/485 2
Part Number 1655304032
Footprint WF_5P_49_BOX_85205
Description WAFER 5P 1.25mm 180D(M) SMD 85205-05701
Pin Pin Name
1422RX-
2422RX+
3 422/485TX+
4 422/485TX-
5 GND
CN24 COM3/COM4 RS-232
Part Number 1653004793
Footprint HD_10x2P_79_23N685B-20M10
Description BOX HEADER 10x2P 2.0mm 180D(M)SMD 23N685B-20M10B
Pin Pin Name
1DCD3#
2DSR3#
3RXD3
4RTS3#
5TXD3
6CTS3#
7DTR3#
8RI3#
9GND
10 GND
11 DCD4#
12 DSR4#
13 RXD4
14 RTS4#
15 TXD4
16 CTS4#
17 DTR4#
18 RI4#
