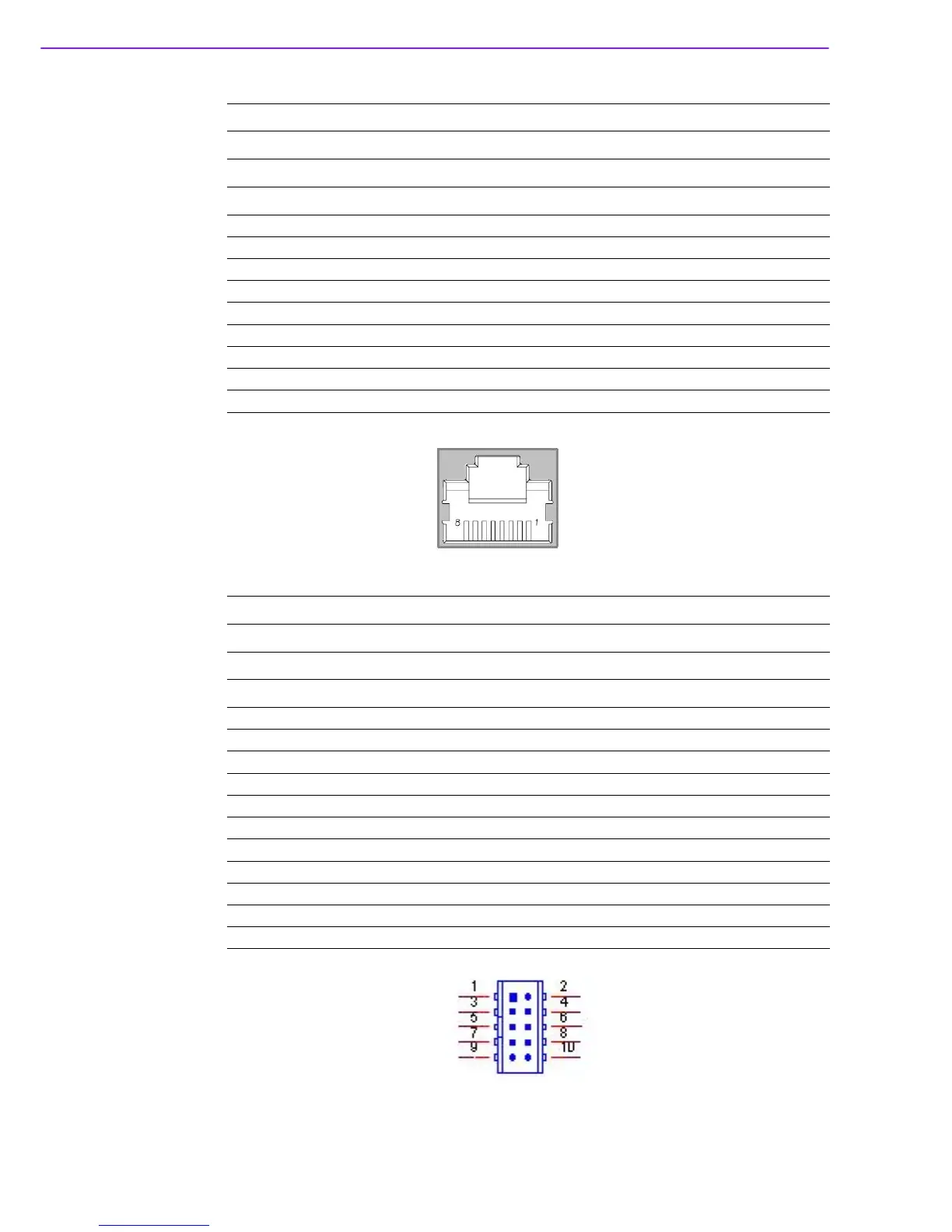

MIO-5250 User Manual 48
Matching Cable: 1703100152
CN14 LAN
Part Number 1652003274
Footprint RJ45_28P_RTB-19GB9J1A
Description PHONE JACK RJ45 28P DIP RTB-19GB9J1A
Pin Pin Name
1 TX+(10/100), BI_DA+(GHz)
2 TX-(10/100), BI_DA-(GHz)
3 RX+(10/100), BI_DB+(GHz)
4BI_DC+(GHz)
5 BI_DC-(GHz)
6 RX-(10/100), BI_DB-(GHz)
7BI_DD+(GHz)
8 BI_DD-(GHz)
CN30 Audio
Part Number 1653004099
Footprint HD_5x2P_79_23N685B-10M10
Description BOX HEADER 5x2P 2.00mm 180D(M) SMD 23N685B-10M10
Pin Pin Name
1LOUTR
2LINR
3GND
4GND
5LOUTL
6LINL
7GND
8GND
9MIC1R
10 MIC1L
