UNO-2372G User Manual 6
2.1 Introduction

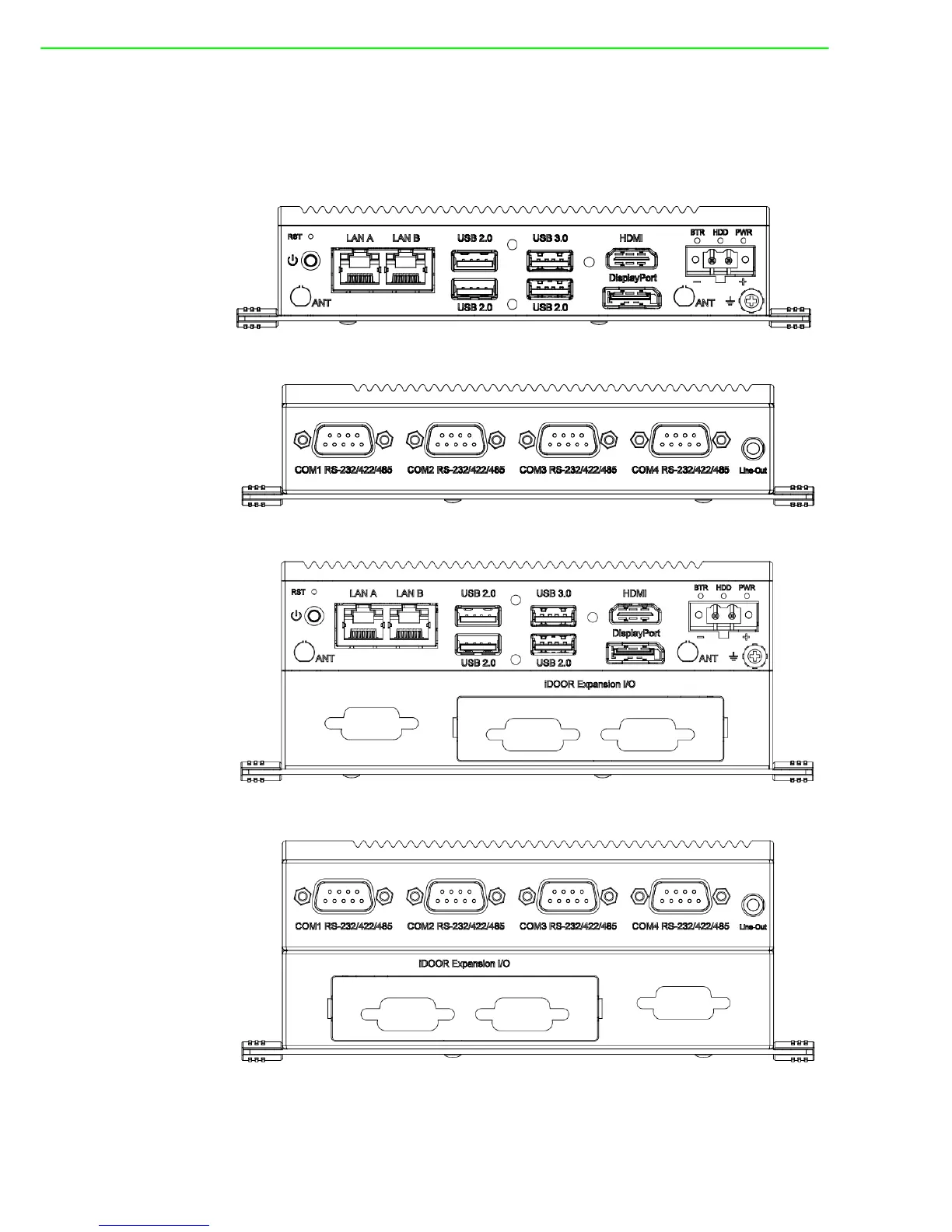

The UNO-2372G connectors are shown in Figures 2.1, 2.2, and 2.3. Additionally, a
description of each peripheral is provided in the following sections.
Figure 2.1 Front panel of the UNO-2372G single-stack model
Figure 2.2 Rear panel of the UNO-2372G single-stack model
Figure 2.3 Front panel of the UNO-2372G double-stack model
Figure 2.4 Rear panel of the UNO-2372G double-stack model
