Advantech UNO-2372G - Power Connector (PWR); DP Connector

UNO-2372G User Manual 22

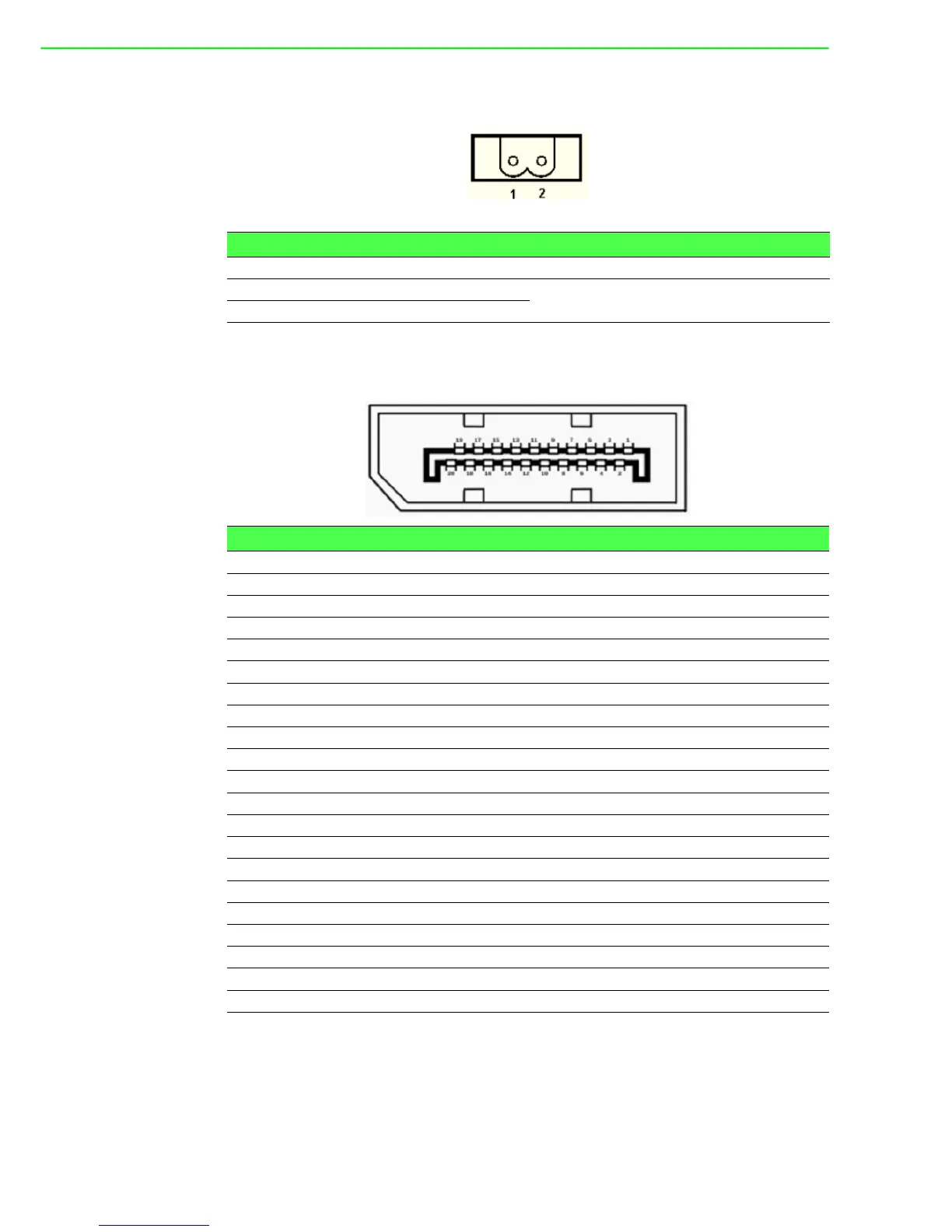

A.3 Power Connector (PWR)
A.4 DP Connector
Table A.3: Power Connector Pin Assignments
Pin Signal Description
1 Power In V+
10 ~ 36 V
DC
2 Power In V- (GND)
Table A.4: DisplayPort Adaptor Cable Pin Assignment
Pin Signal Name
1 ML_Lane 0 (p)
2GND
3 ML_Lane 0 (n)
4 ML_Lane 1 (p)
5GND
6 ML_Lane 1 (n)
7 ML_Lane 2 (p)
8GND
9 ML_Lane2 (2)
10 ML_Lane 3 (p)
11 GND
12 ML_Lane 3 (n)
13 CONFIG1
14 CONFIG2
15 AUX CH (p)
16 GND
17 AUX CH (n)
18 Hot plug
19 Return
20 DP_PWR
