Appendix A System Settings
/
Pin Assignments
A.5 USB 3.0
A.6 HDMI Display Connector

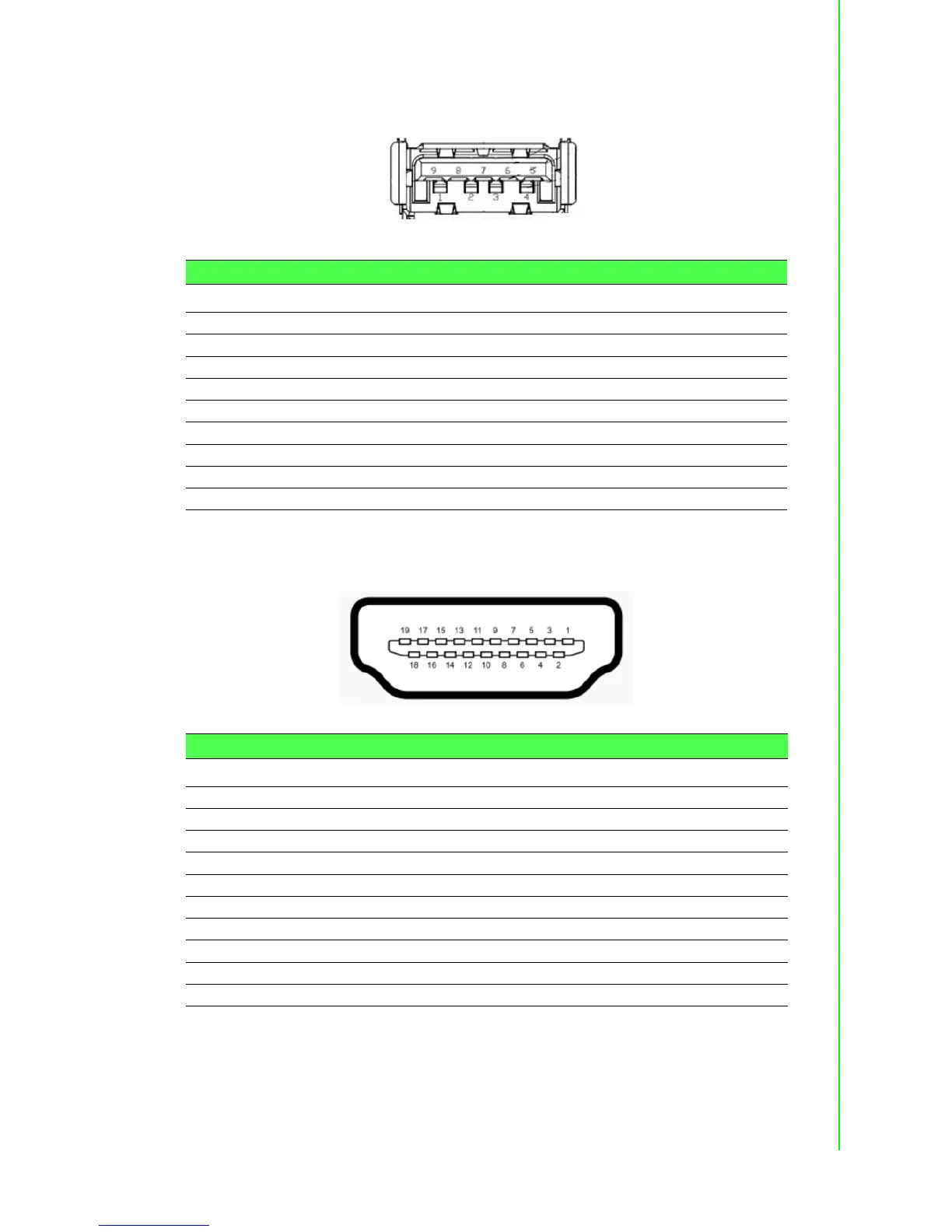

Table A.5: USB 3.0 Connector Pin Assignments
Pin Signal Name Description
1 VBUS Power
2 D- USB2.0 differential pair
3D+
4 GND Ground for power return
5 StdA_SSRX- SuperSpeed receiver differential pair
6 StdA_SSRX+
7 GND_DRIAN Ground for signal return
8 StdA_SSTX- SuperSpeed transmitter differential pair
9 StdA_SSTX+
Table A.6: HDMI Display Connector
Pin Signal Pin Signal
1 TMDS data2+ 2 TMDS data2 shield
3 TMDS data2- 4 TMDS data1+
5 TMDS data1 shield 6 TMDS data1-
7 TMDS data0+ 8 TMDS data0 shield
9 TMDS data0- 10 TMDS clock+
11 TMDS clock shield 12 TMDS clock-
13 CEC 14 Reserved
15 SCL 16 SDA
17 DDC/CEC/HEC ground 18 +5 V power (max. 50 mA)
19 Hot plug detect
