UNO-2372G User Manual 10
3.1 Chassis Grounding
UNO-2372G provides excellent EMI protection and a stable grounding base, and fea-
tures an easy-to-connect chassis grounding point.

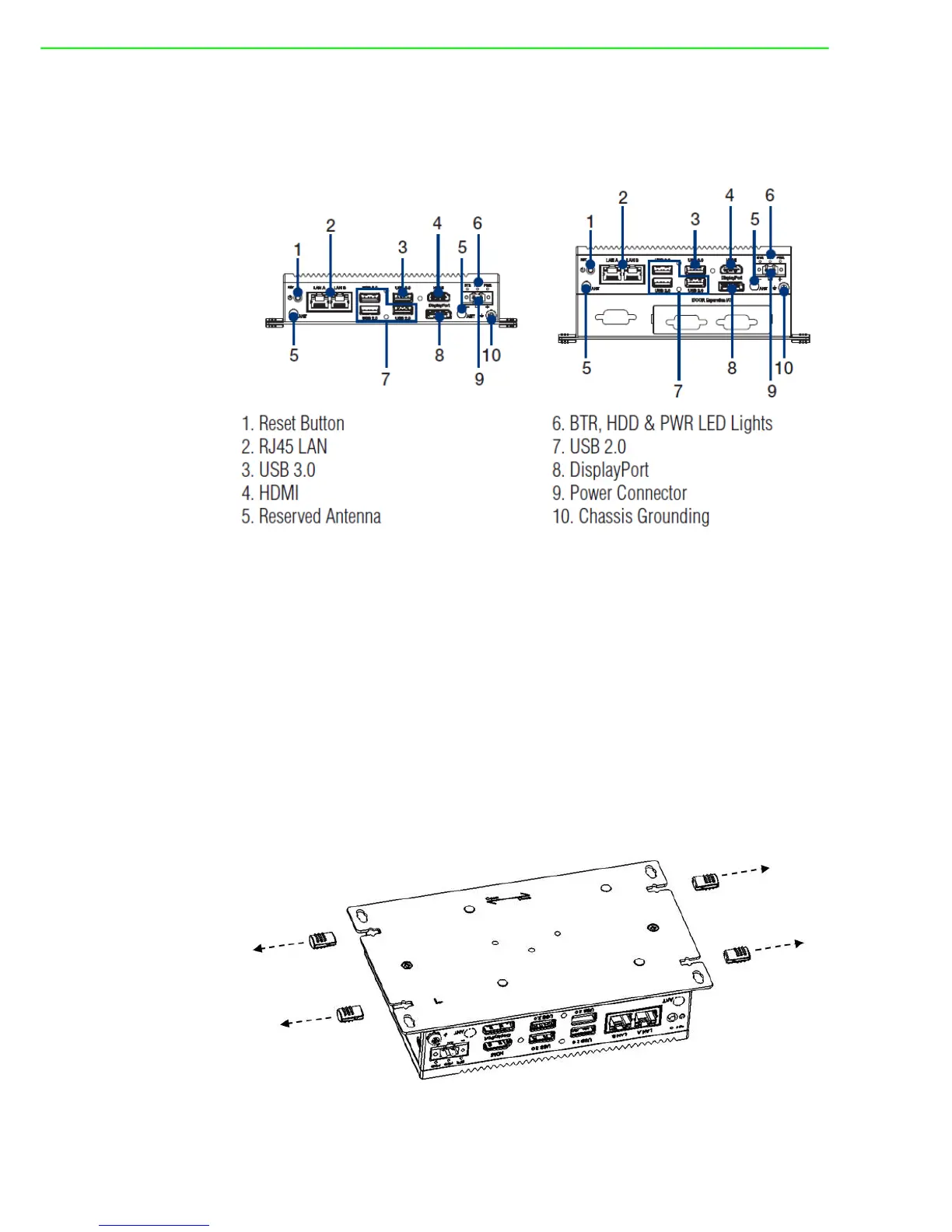

Figure 3.1 Chassis grounding connection
3.2 Connecting Power
This product is intended to be supplied by an approved power adapter or DC power
source rated 10 ~ 36 V
DC
, 4A, and TMAX 60 °C. (Should you require additional
assistance, please contact Advantech.)
3.3 Opening/Closing the Rear Cover
The rear cover can be opened in order to install a mPCIe module, mSATA SSD, and
HDD, or to adjust the switch settings.
Opening the rear cover:
1. Remove the four rubber feet.
