Advantech UNO-2372G - Page 23

11 UNO-2372G User Manual
Chapter 3 Initial Setup

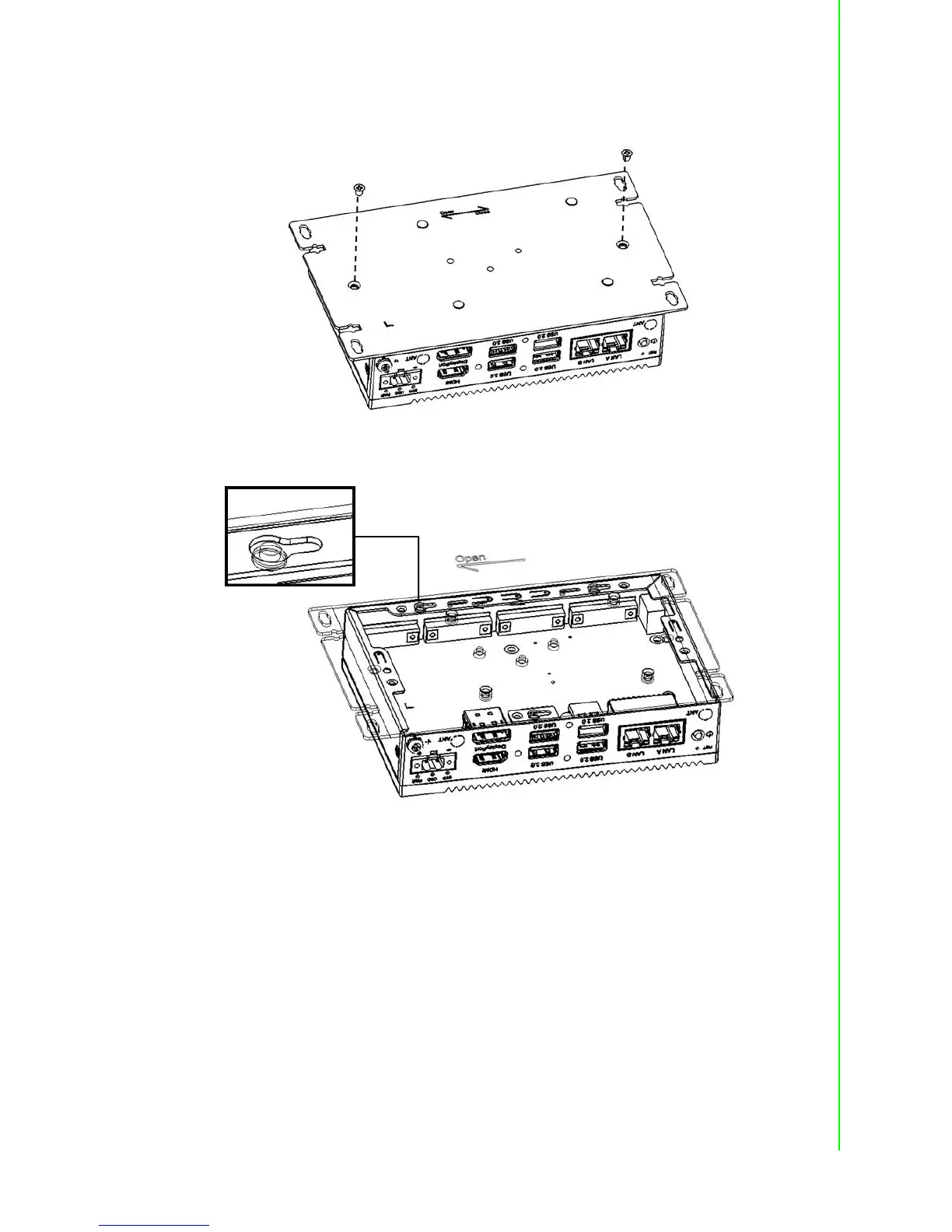

2. Remove the two screws of the rear cover.
3. Slide the rear cover to the left to open the cover.
Closing the rear cover:
1. Align the guide pillars of the device with the brackets of the rear cover. Then
slide the rear cover to the right to position in place.
