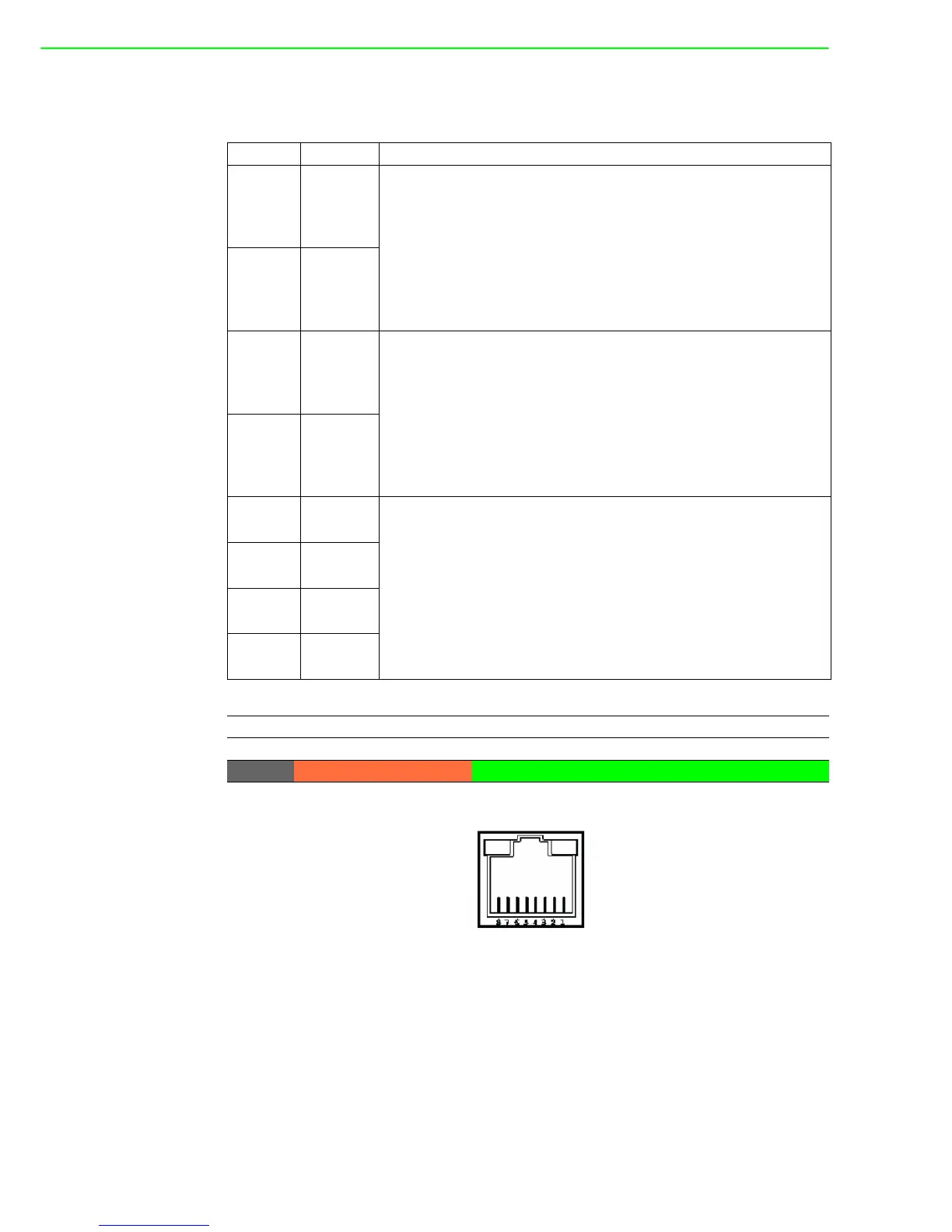

A.9 LAN RJ45 Connector
RJ45 Pin Signal Description
1 MDI0+
 In BASE-T: Media-dependent interface[0]:
 1000BASE-T: In MDI configuration, MDI[0]+/- corre-
sponds to BI_DA+/- and in MDI-X configuration MDI[0]+/-
corresponds to BI_DB+/-.
 10BASE-T and 100BASE-TX: In MDI configuration,
MDI[0]+/- is used for the transmit pair. n MDIX
configuration, MDI[0]+/- is used for the receive pair.
2 MDI0-
3 MDI1+
 In BASE-T: Media-dependent interface[1]:
 1000BASE-T: In MDI configuration, MDI[1]+/- corre-
sponds to BI_DB+. In MDI-X configuration, MDI[1]+/- cor-
responds to BI_DA+/-.
 10BASE-T and 100BASE-TX: In MDI configuration,
MDI[1]+/- is used for the receive pair. In MDI-X
configuration, MDI[1]+/- is used for the transmit pair.
6 MDI1-
4MDI2+
 In BASE-T: Media-dependent interface[3:2]:
 1000BASE-T: In MDI and in MDI-X configuration,
MDI[2]+/- corresponds to BI_DC+/- and MDI[3]+/- corre-
sponds to BI_DD+/-.
 100BASE-TX: Unused
 10BASE-T: Unused
5MDI2-
7MDI3+
8MDI3-
Left LED Right LED
10 Link 100 Link 1000 Link Active
Off Orange Green Green
