UNO-2372G User Manual 16

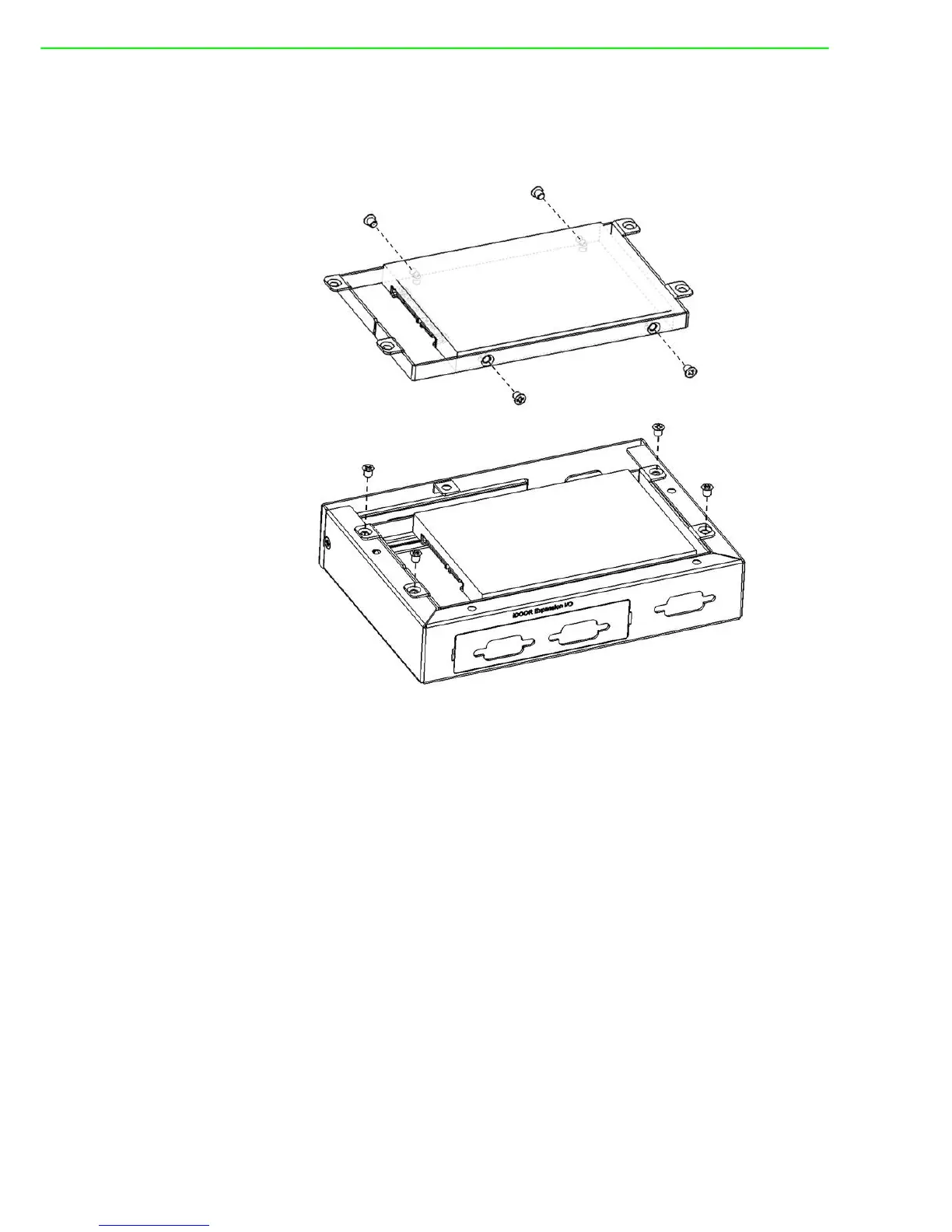

4. Remove the screws to detach the HDD bracket from the second stack. Affix the
HDD to the HDD bracket. Then affix the HDD bracket back onto the second
stack using the screws provided.
5. Connect a SATA cable to the HDD and motherboard.
