Advantech UTC-315 User Manual

UTC-315 User Manual 18

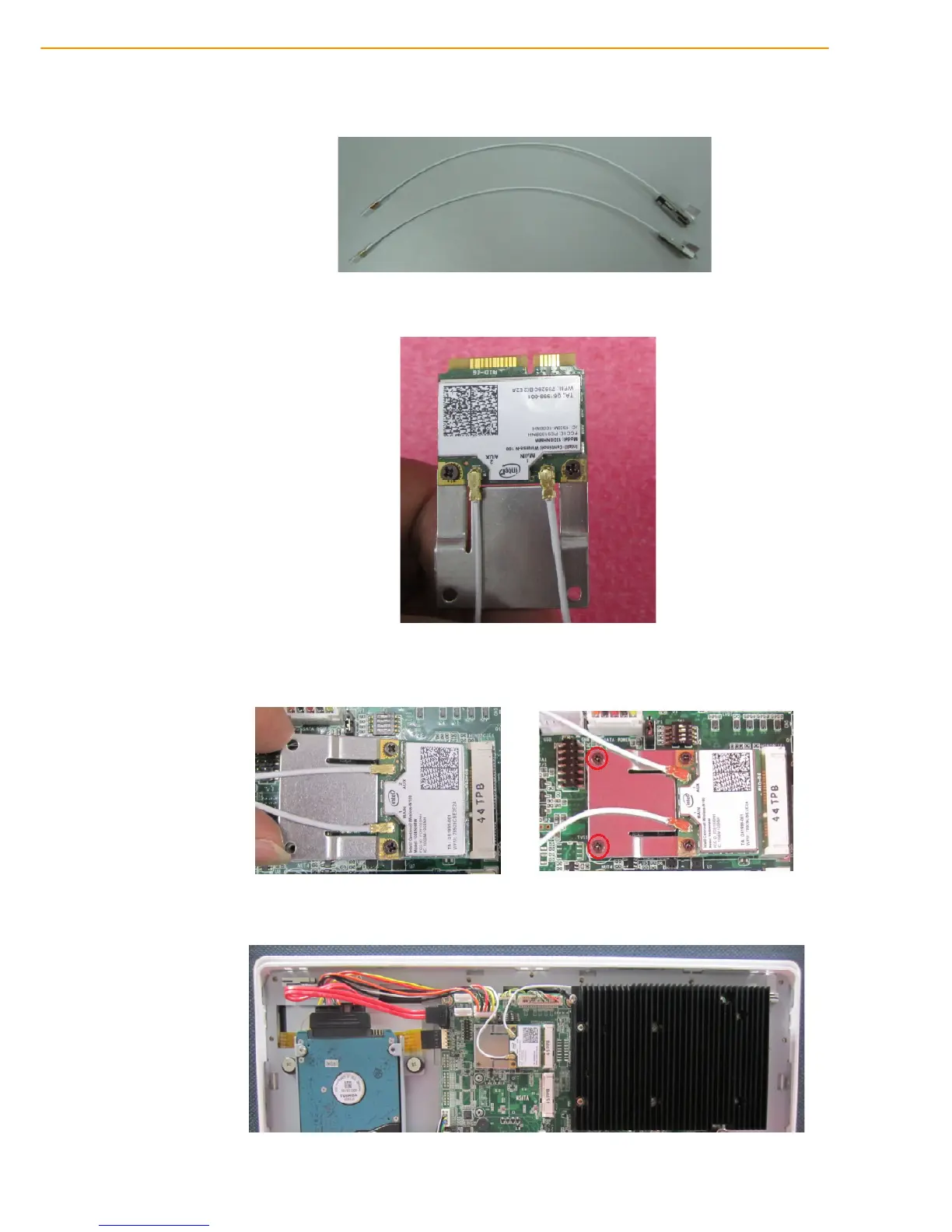

2. Remove 6 screws on the reinforced board.
3. Coaxial cable (Advantech P/N: 1750006682-01)
4. Connect the coaxial cable to "ANT1" on the WLAN card.
5. Install the WLAN card on M/B bottom side.
6. Cable routing of the wireless antenna is shown below.
